Service Trailers. Built Tough by Ox Trailers

The main design feature of the trailer chassis is the 5mm 350* grade steel, C-Section Channel that runs the full length of the trailer allowing the chassis to flex and move as it negotiates rough road terrain.

The fabricated chassis is made of laser cut, CNC folded, 350 grade*, open chassis members allowing for easy wash down and cleaning, with no enclosed areas where mud, sand and salt can get trapped and cause corrosion.

*350 grade is higher tensile steel. Box Section is 300 grade and most C sections are 300.

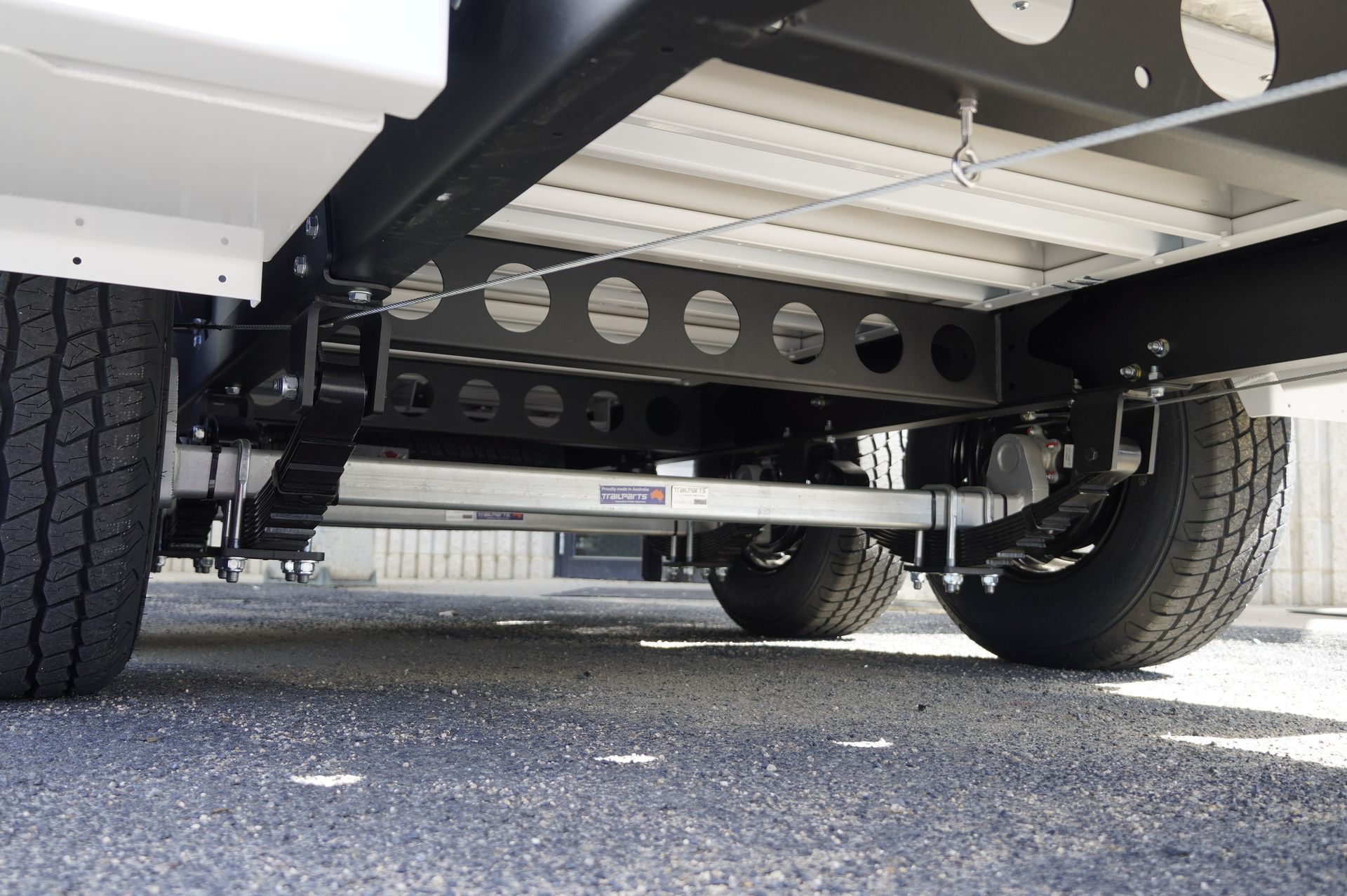

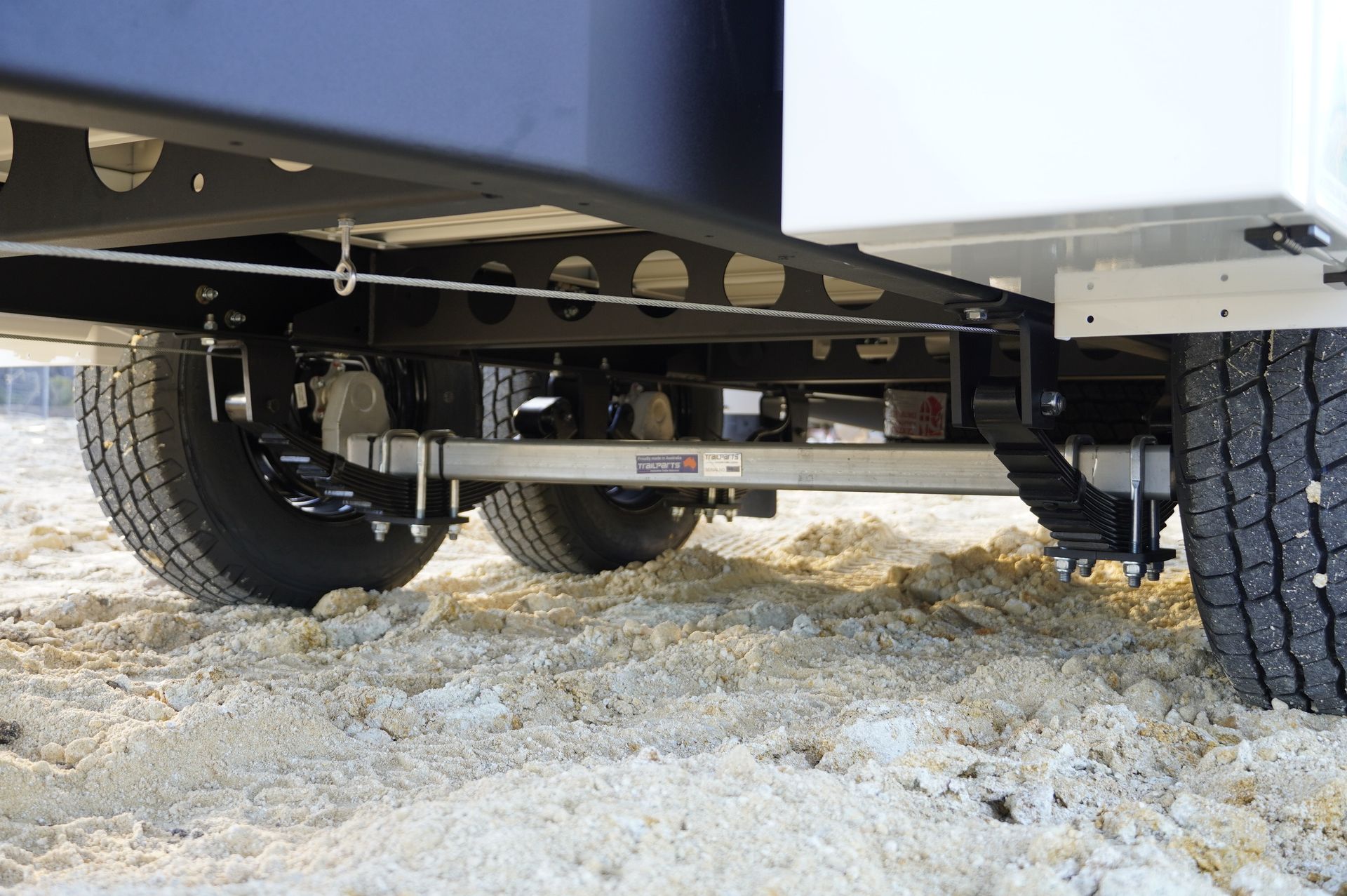

heavy duty ox trailers lad sharing leaf spring suspension, designed to be durable over rough terrain.

Load Sharing Leaf Spring Suspension Set

The Load Sharing Leaf spring suspension set ensures a safe and stable trailer on and off-road.

The load sharing system distributes weight evenly between the two wheels ensuring the load remains level and the weight strain isn't put on one wheel.

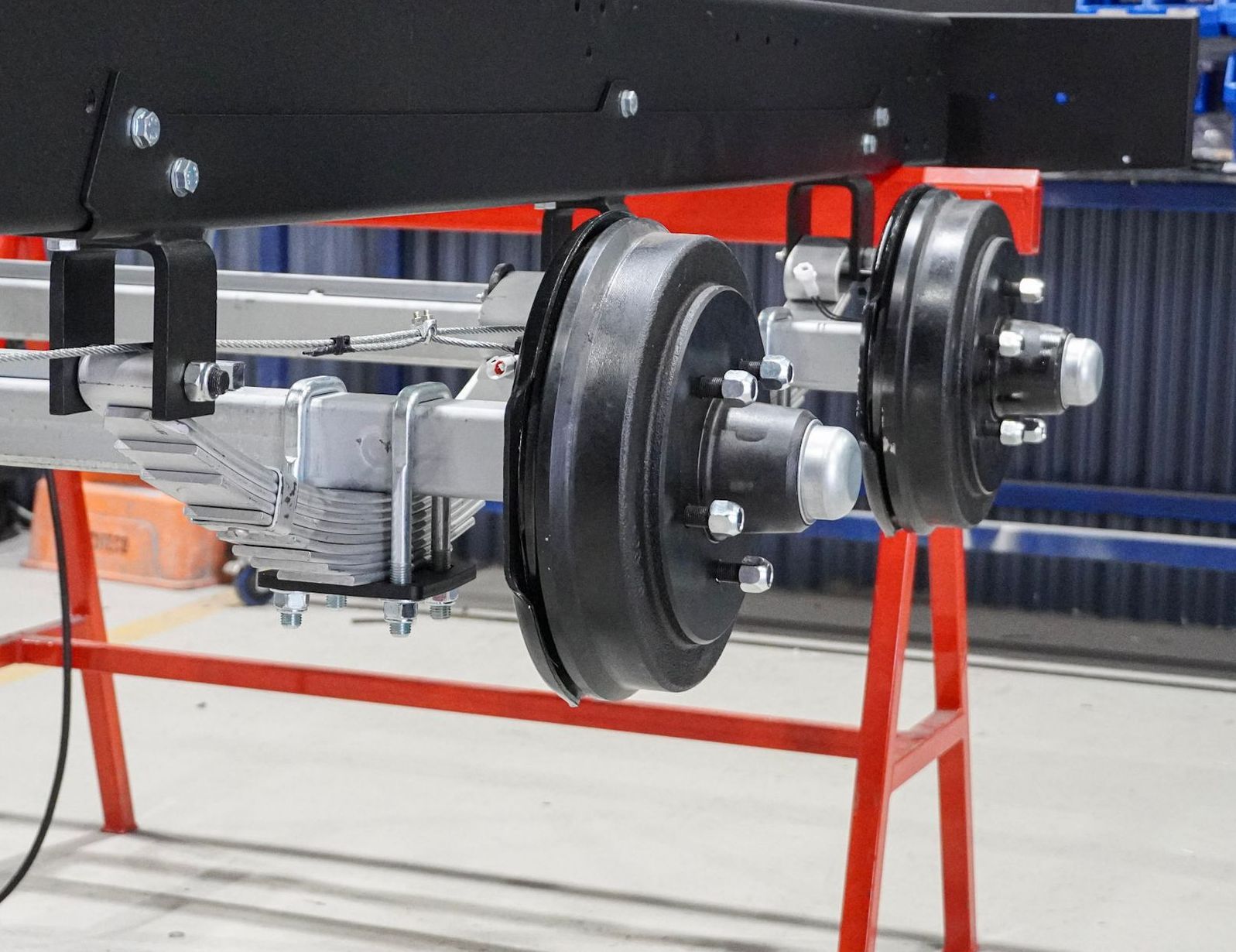

heavy duty 12-inch electric dumbrakes of an ox trailer service trailer whilst in assembly

12 Inch Electric Drum Brakes

Electric drum brakes provide a safe and reliable braking solution.

We provide a 12-inch drum brake as these are heavy duty and robust.

Service Trailer with drop axles, built in australia by ox trailers for machinery servicing.

5-Tonne Capacity Axle Set

65 x 65 SHS Axles with a 95mm Drop

Dual Row Taper Roller Bearings

Each trailer has 4 Dual Row Taper Roller Bearings.

These are 3000kg each, with a triple lip marine seal with a secondary O-Ring seal incorporated into the dust cap.

These come with a 3 year manufacturers warranty.

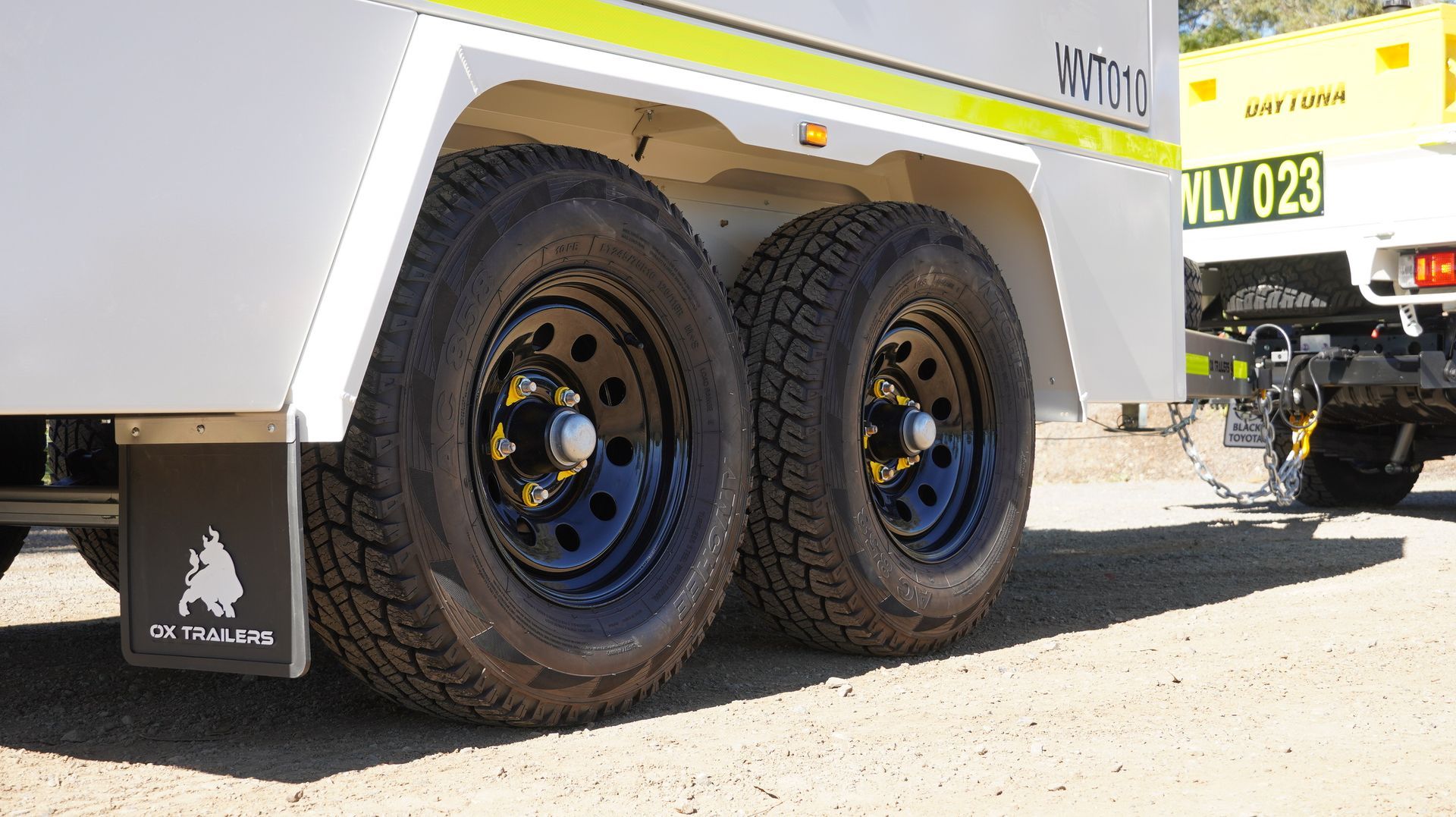

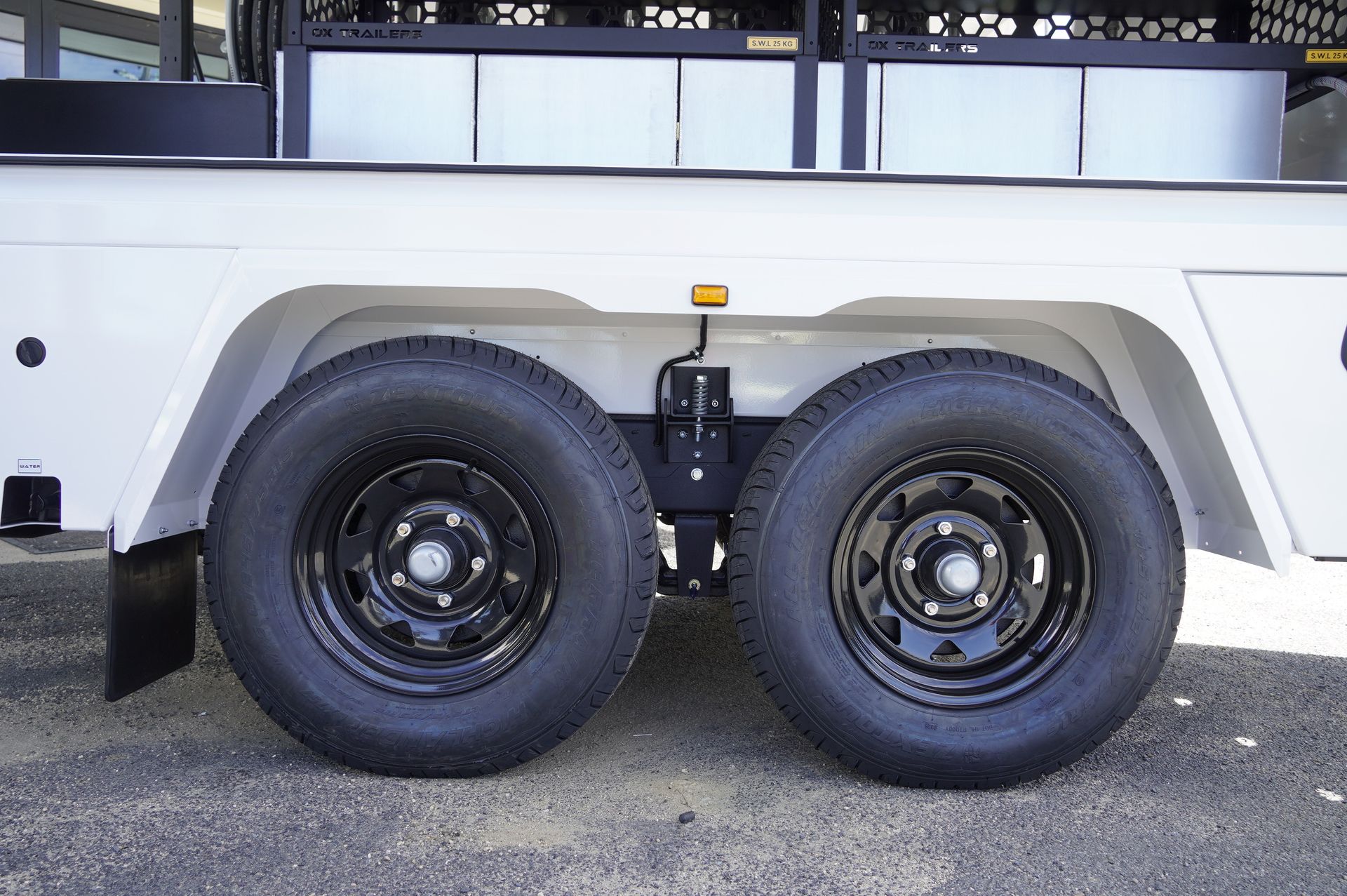

heavy duty off road service trailer wheels and rims built by ox trailers for the mine site.

5 x Land Cruiser Wheels and All Terrain Tyres

Each trailer is fitted with All Terrain 235RI6 / 75 New Tyres.

These tyres are equipped with 16-inch wheels with a 5 Stud Landcruiser Pattern.

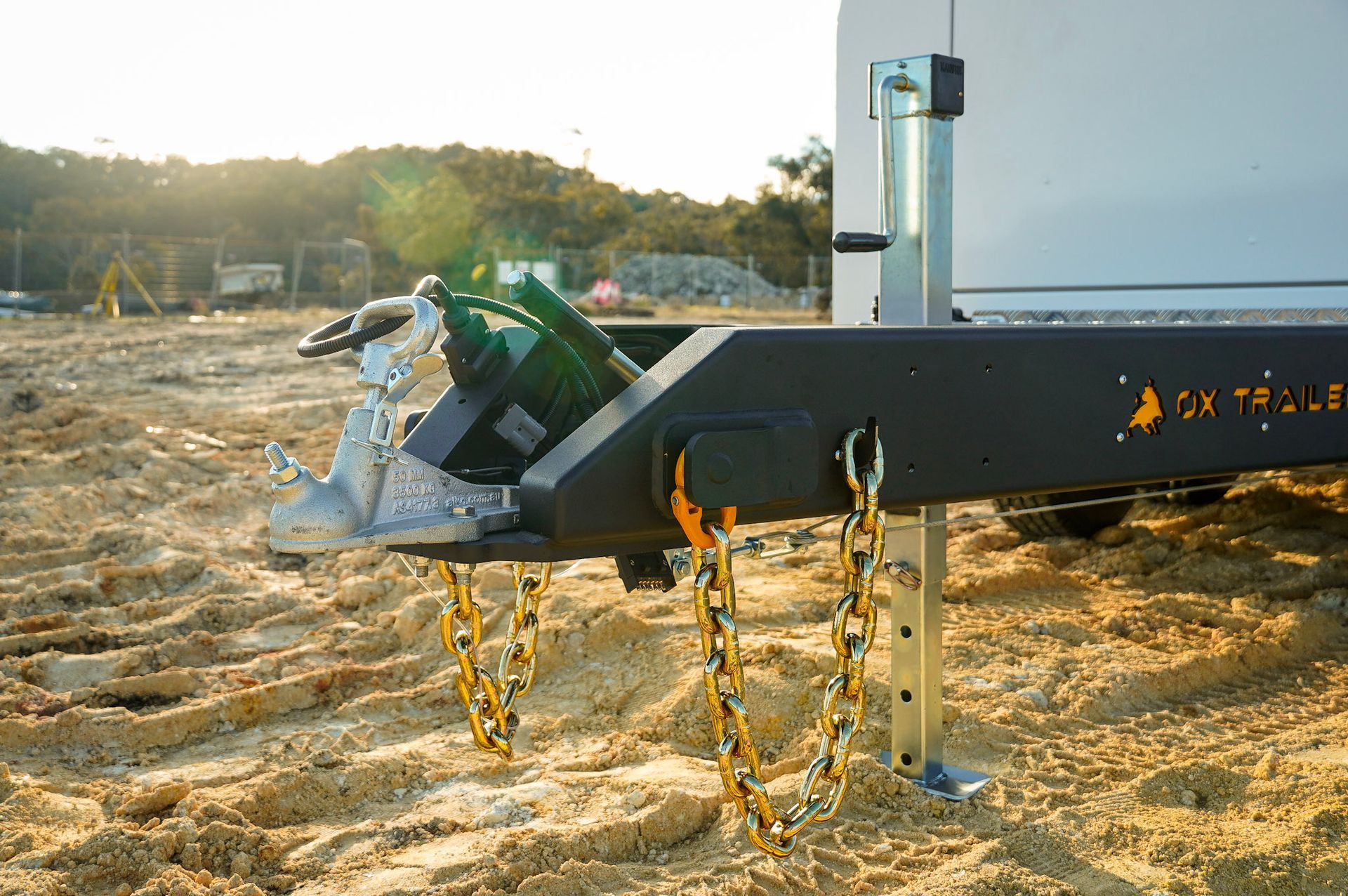

Heavy-duty ox trailers drawba with secure 50mm coupling, safety chains and jack stand designed for mine sites australia wide.

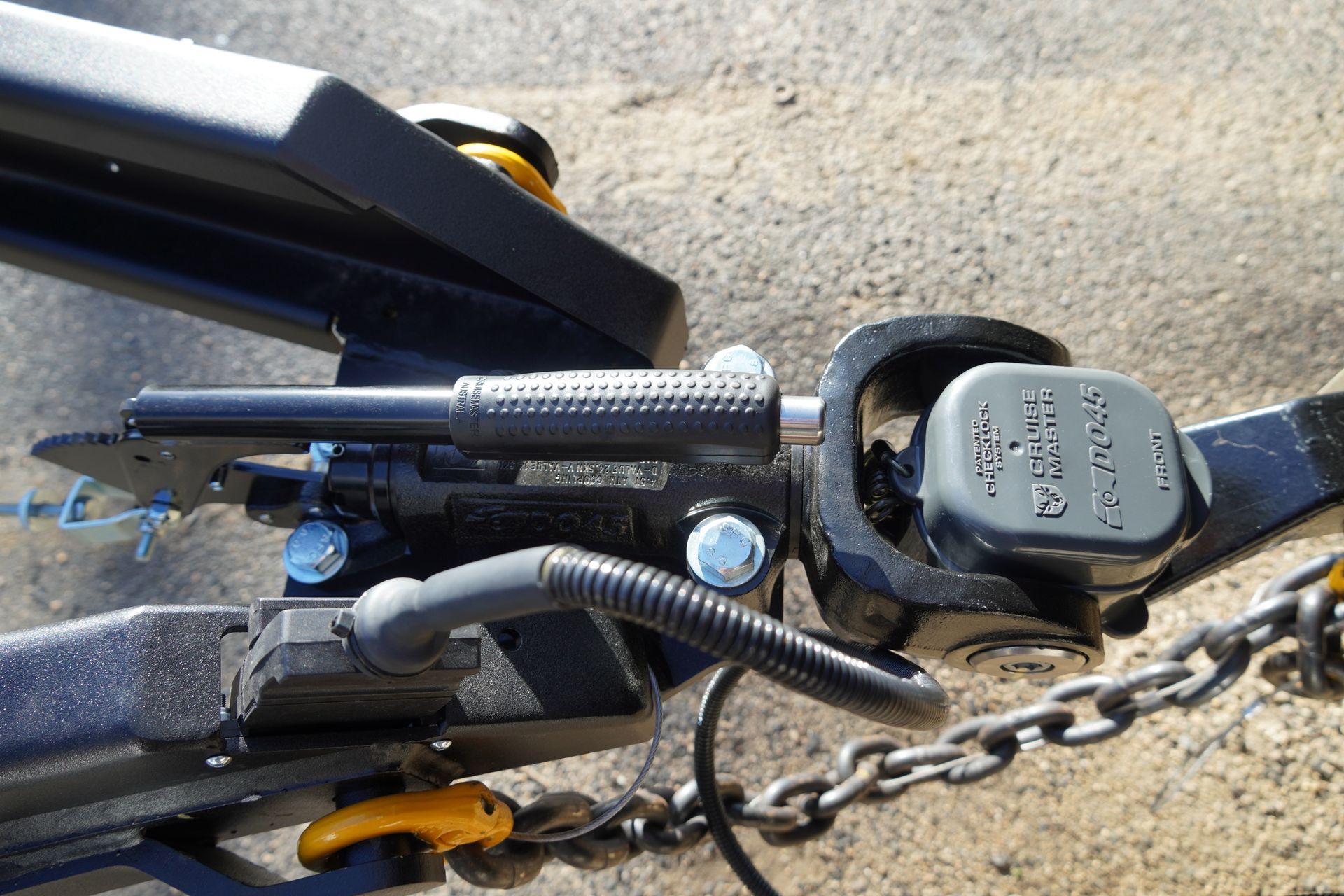

Ratchet Trailer Handbrake and 50mm Coupling

The 50mm Coupler comes standard with all 3500kgs ATM Trailers and is able to be swapped to a 70mm Coupler if registering the trailer at 4500kgs ATM.

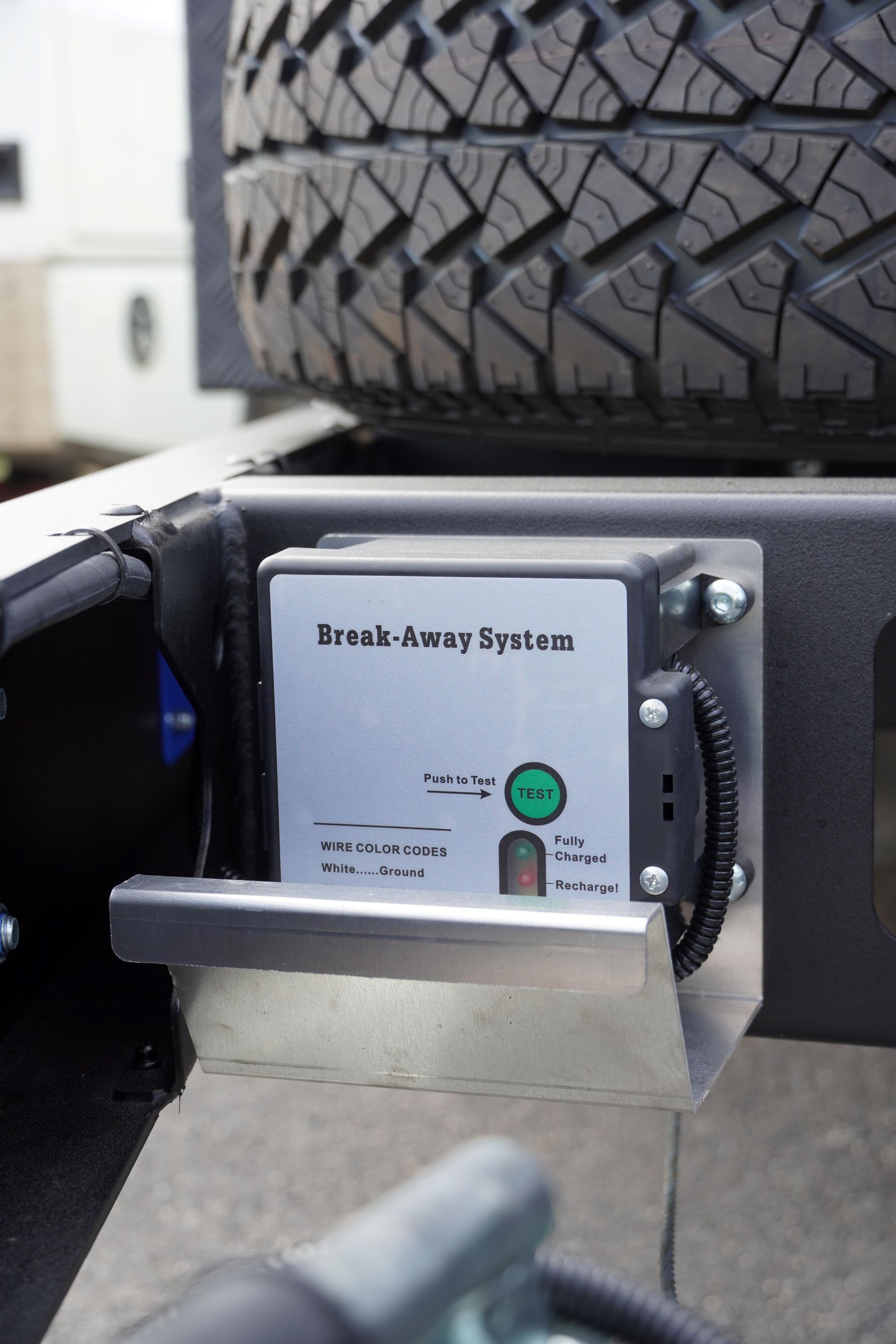

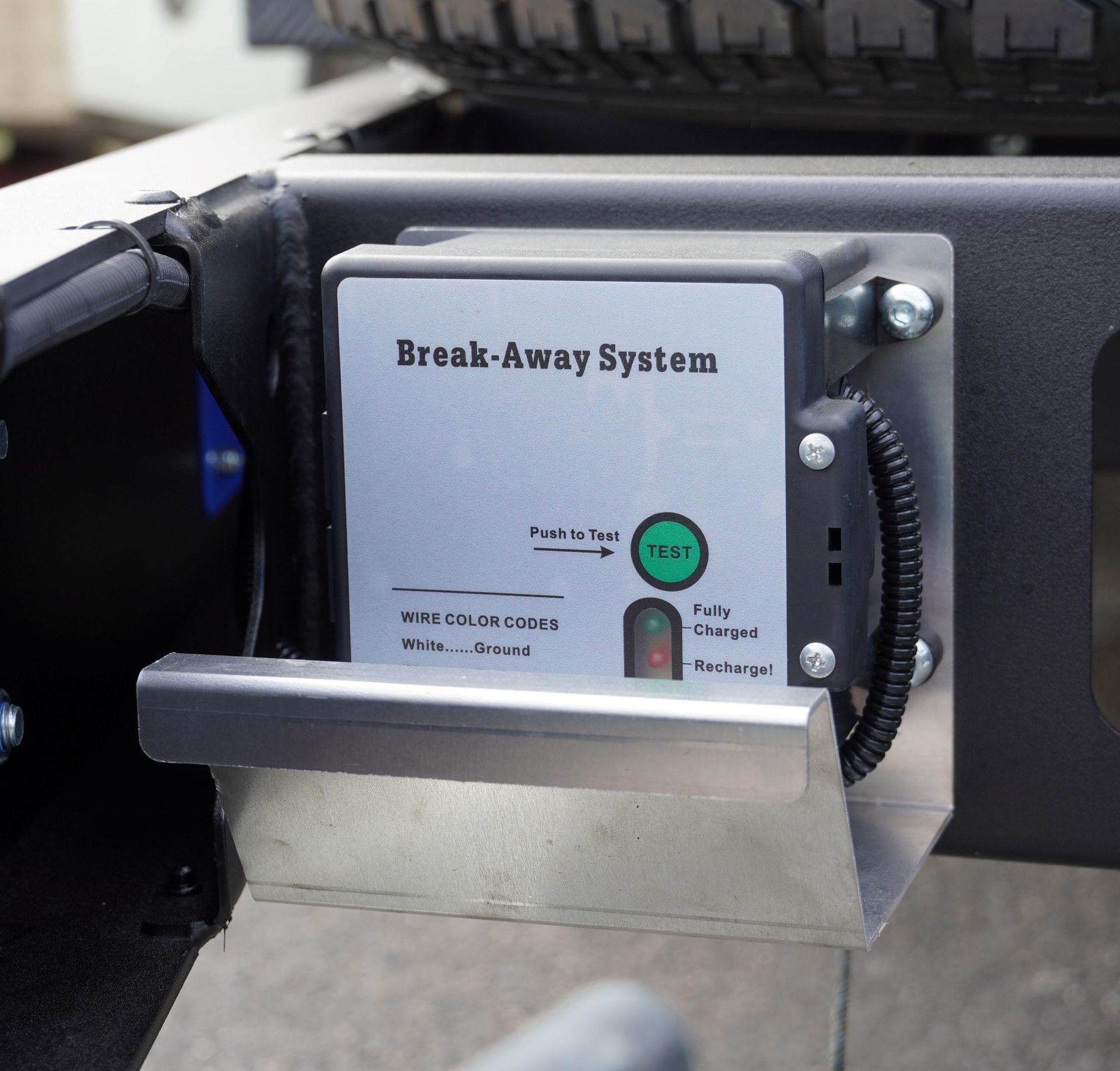

Break-Away System

The trailer Break-Away System is the ultimate emergency brake. It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

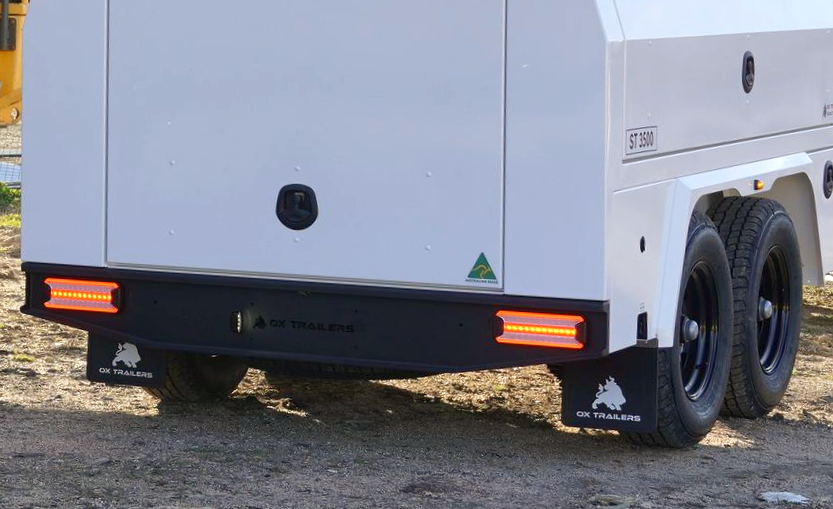

durable and water tight led lights of ox trailers rear tail light channel of service trailer.

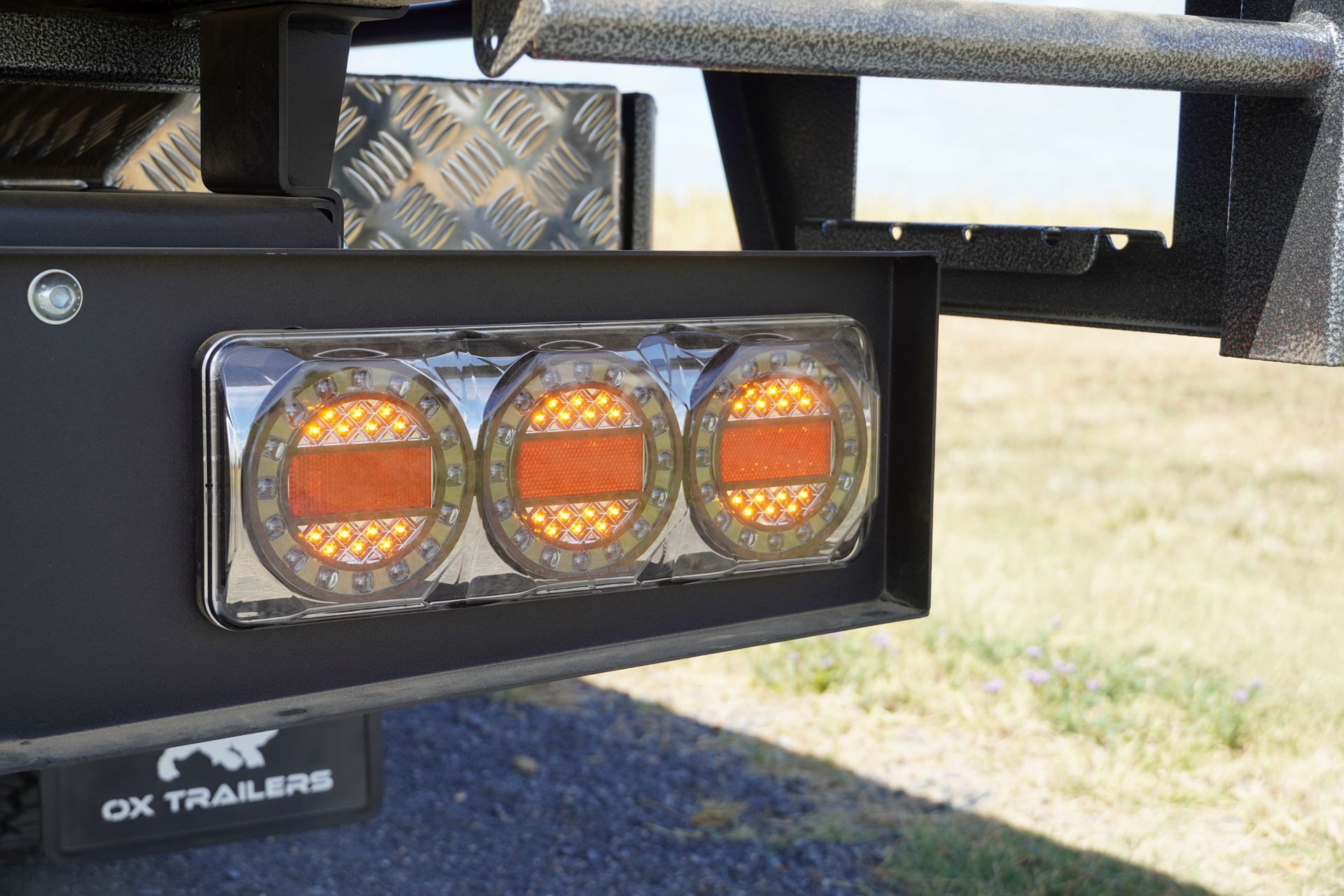

Tail Lights, Clearance Lights and Number Plate Lights

Each trailer is installed with Multi-Volt LED Tail Lights, Clearance Lights + Number PLate Lights.

LOAD SHARING SUSPENSION
The Load Sharing Leaf spring suspension set ensures a safe and stable trailer for on and off-road.

The load sharing system distributes weight evenly between the two wheels ensuring the load remains level and the weight strain isn't put on one wheel.
DRUM BRAKES
Electric drum brakes provide a safe and reliable braking solution.

We provide a 12-inch drum brake as these are heavy duty and robust.
STEEL AXLES
The 3000kg 65mm Square steel axles result in a stronger, yet lighter suspension set-up.
The steel size of 65mm ensures the trailer can safely carry over 3000kg.
BEARINGS
Each trailer has 4 Dual Row Taper Roller Bearings.

These are 3000kg each, with a triple lip marine seal with a secondary O-Ring seal incorporated into the dust cap.

These come with a 3 year manufacturers warranty.
TYRES + WHEELS
Each trailer is fitted with All Terrain 235RI6 / 75 New Tyres.

These tyres are equipped with 16-inch wheels with a 5 Stud Landcruiser Pattern.
HANDBRAKE + COUPLING
The service trailer is fitted with a ratchet trailer handbrake as standard.

The 50mm Coupler comes standard with all 3500kgs ATM Trailers and is able to be swapped to a 70mm Coupler if registering the trailer at 4500kgs ATM.
BREAK-AWAY SYSTEM
The trailer Break-Away System is the ultimate emergency brake.
It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

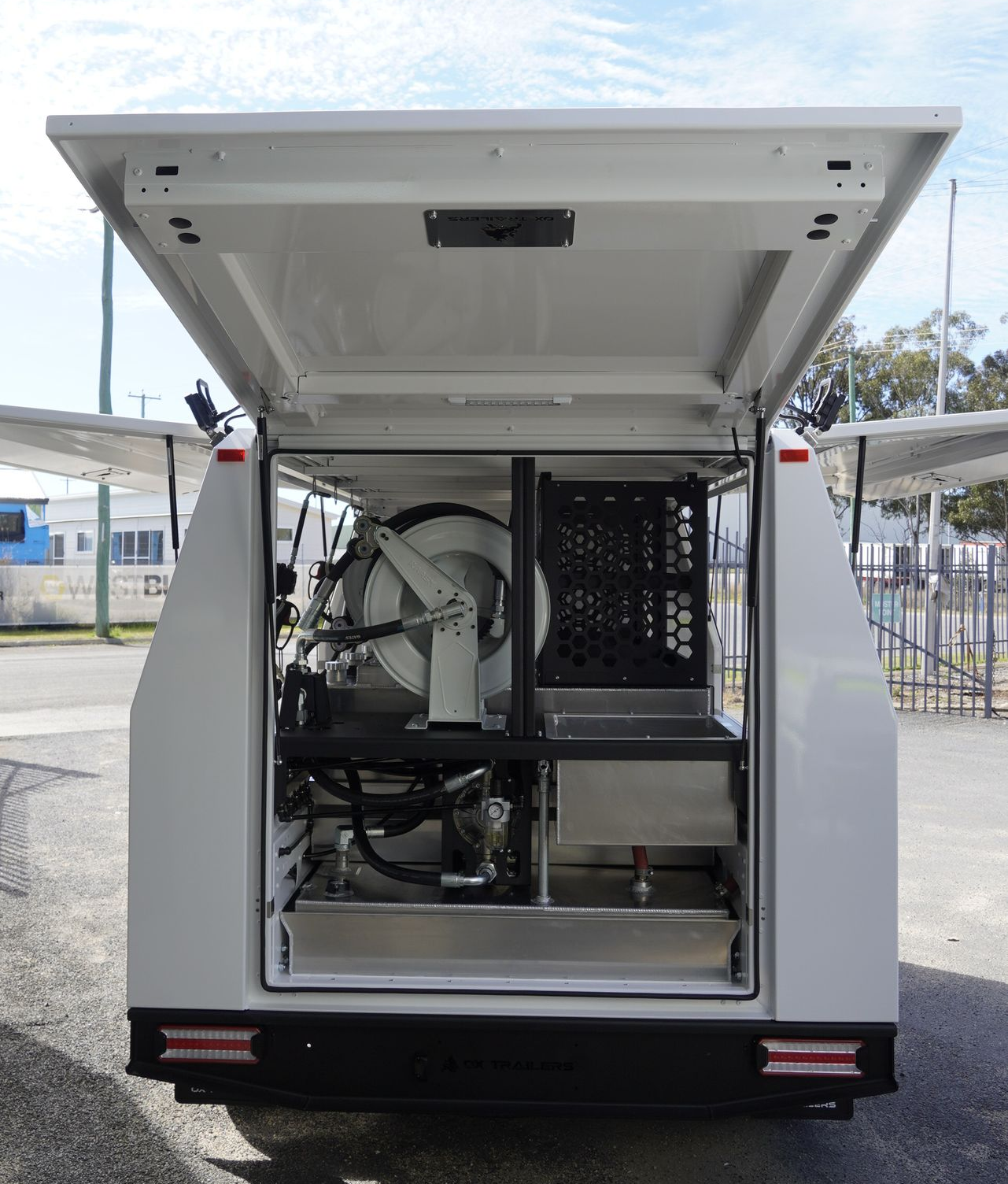

Heavy duty ox trailers service trailer with storage for oil, fuel, and gas, australian made for mine sites.

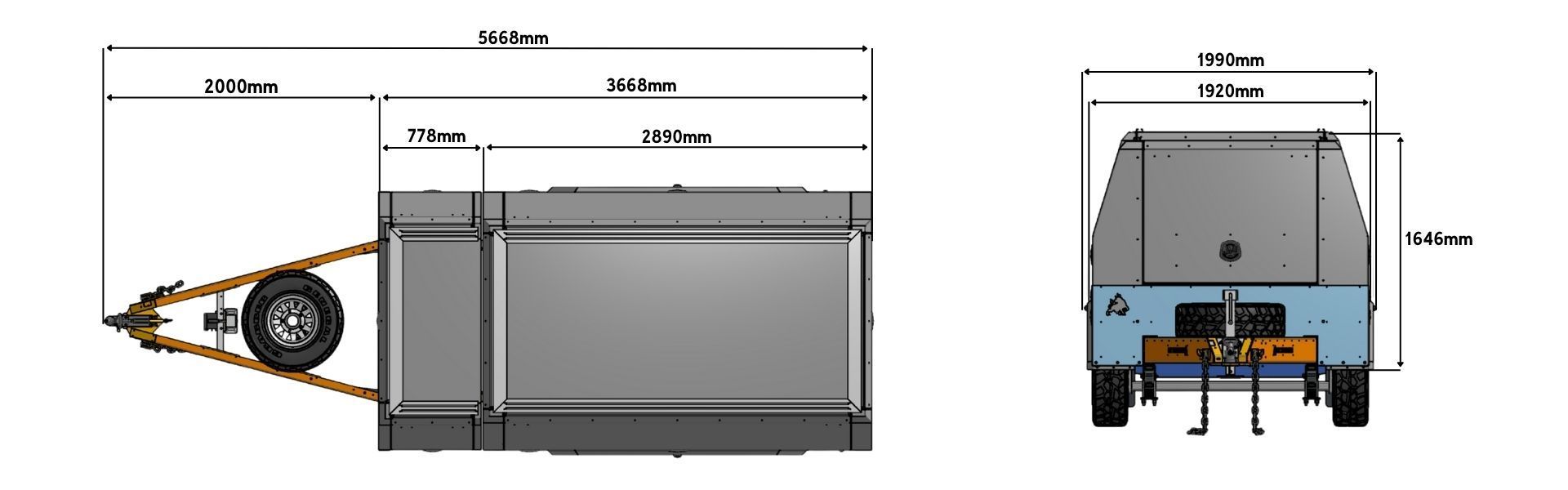

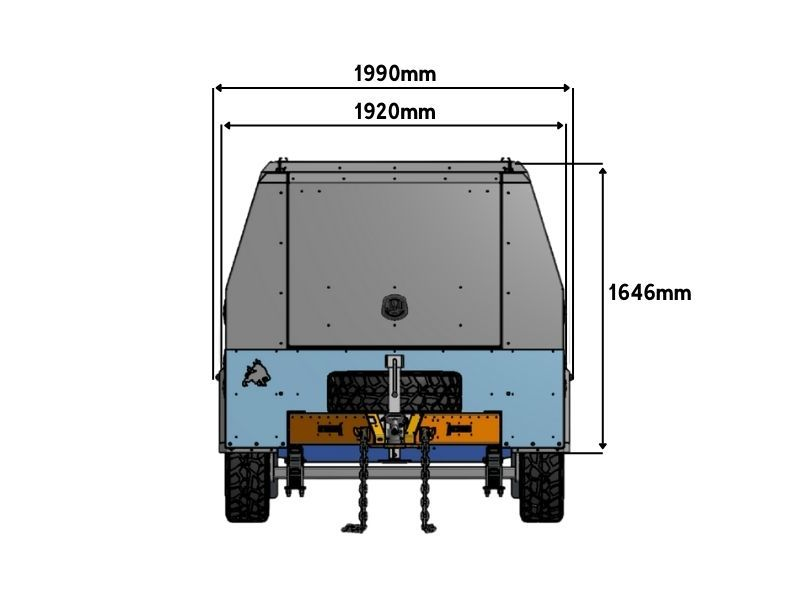

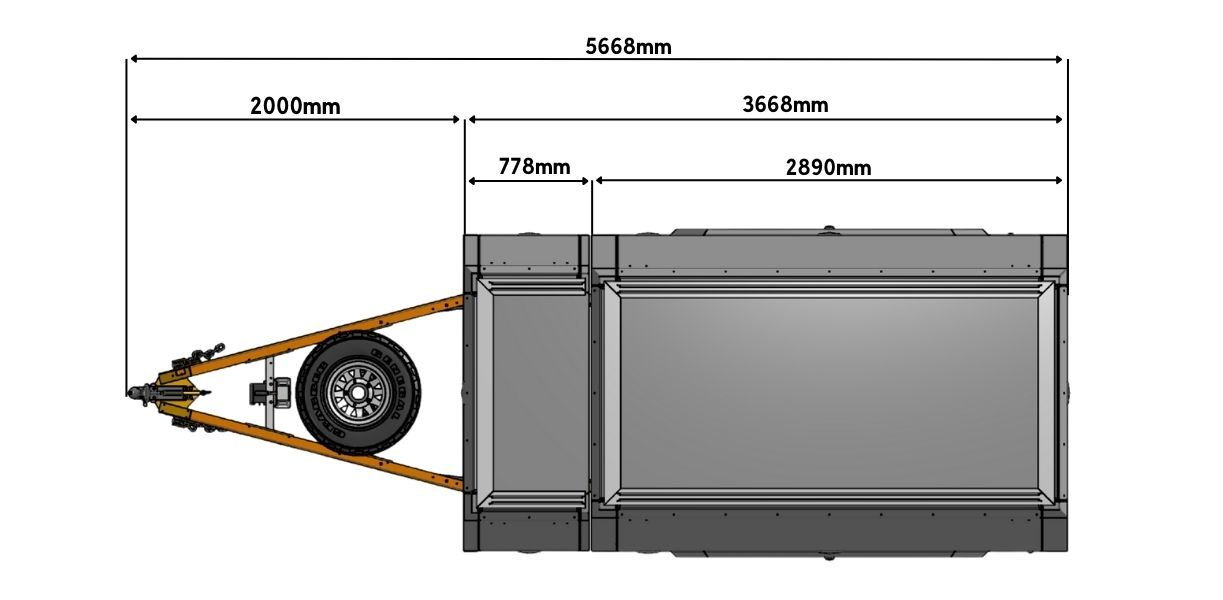

Service Trailer Overall Size

The overall size of the Service Trailer is 568mm Long by 1990mm Wide.

The Canopy is 2890mm Long by 1920mm Wide by 1646mm High.

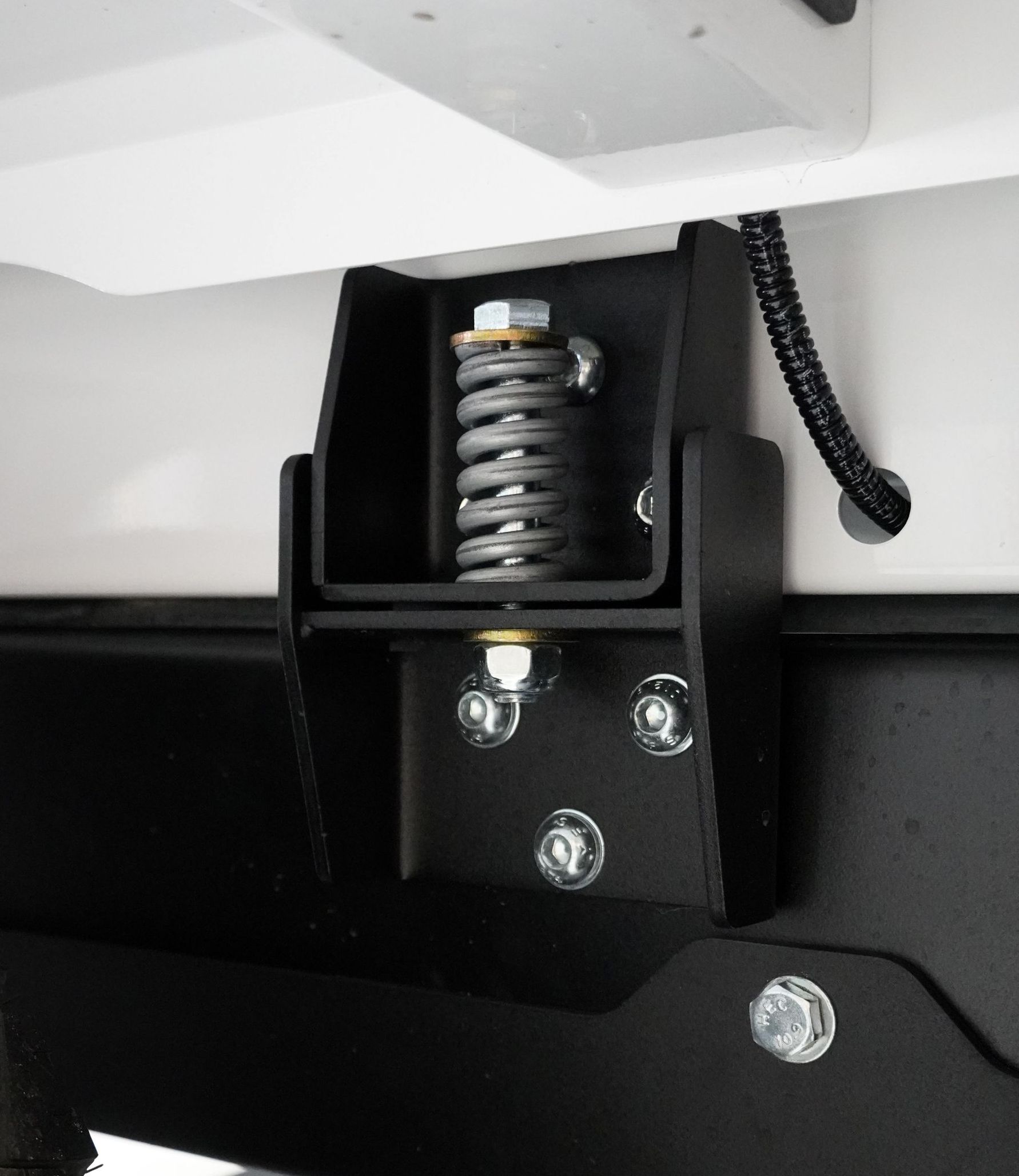

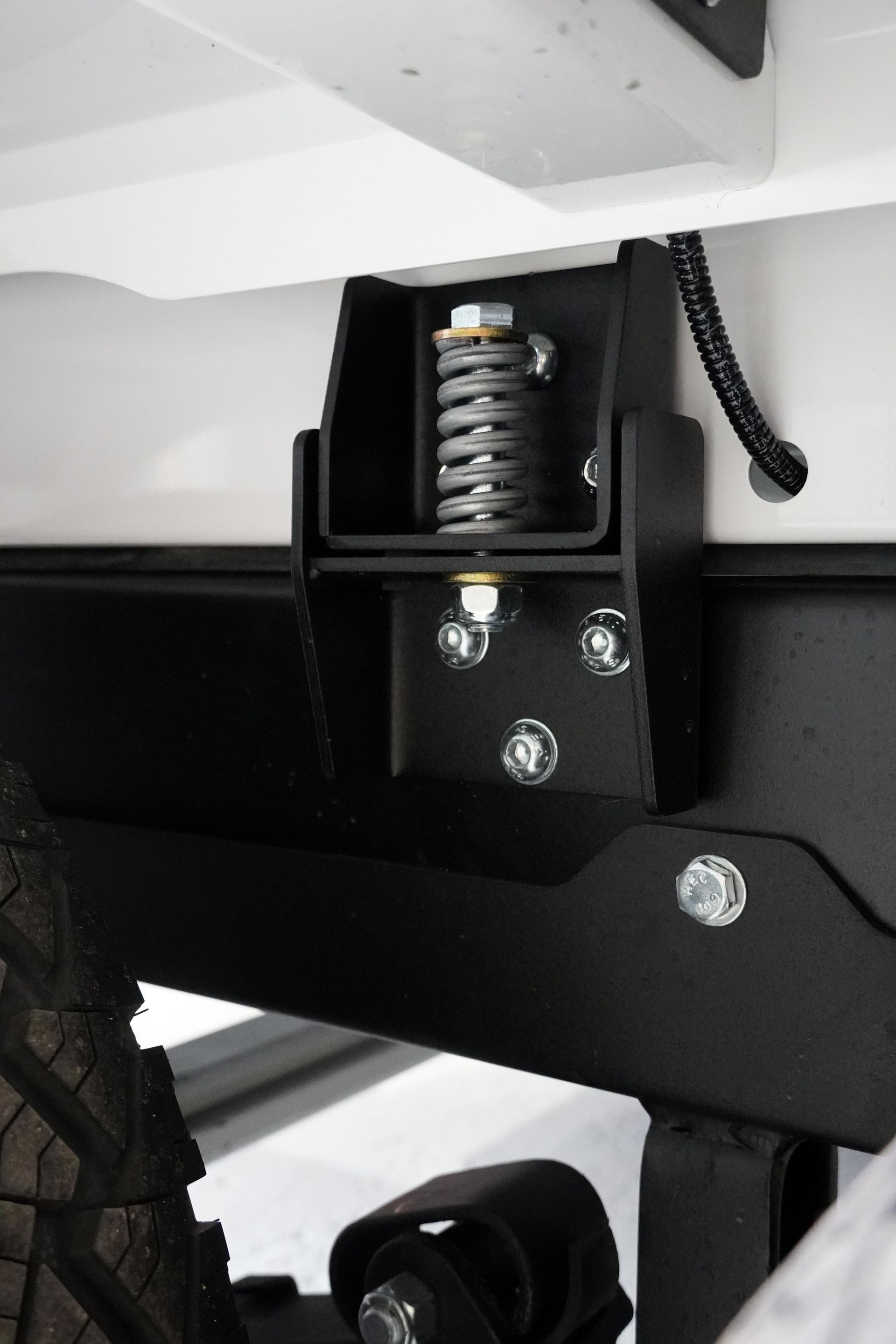

Durable and Australian made spring mount for ox trailers service trailer.

Service Trailer Spring Mounting System

Our unique mounting system reduces the shock/vibration distributed to the Aluminium canopy from the road conditions and is absorbed through this unique engineered mounting system. This reduces stress on the canopy, dramatically reducing cracking and fatigue over time.

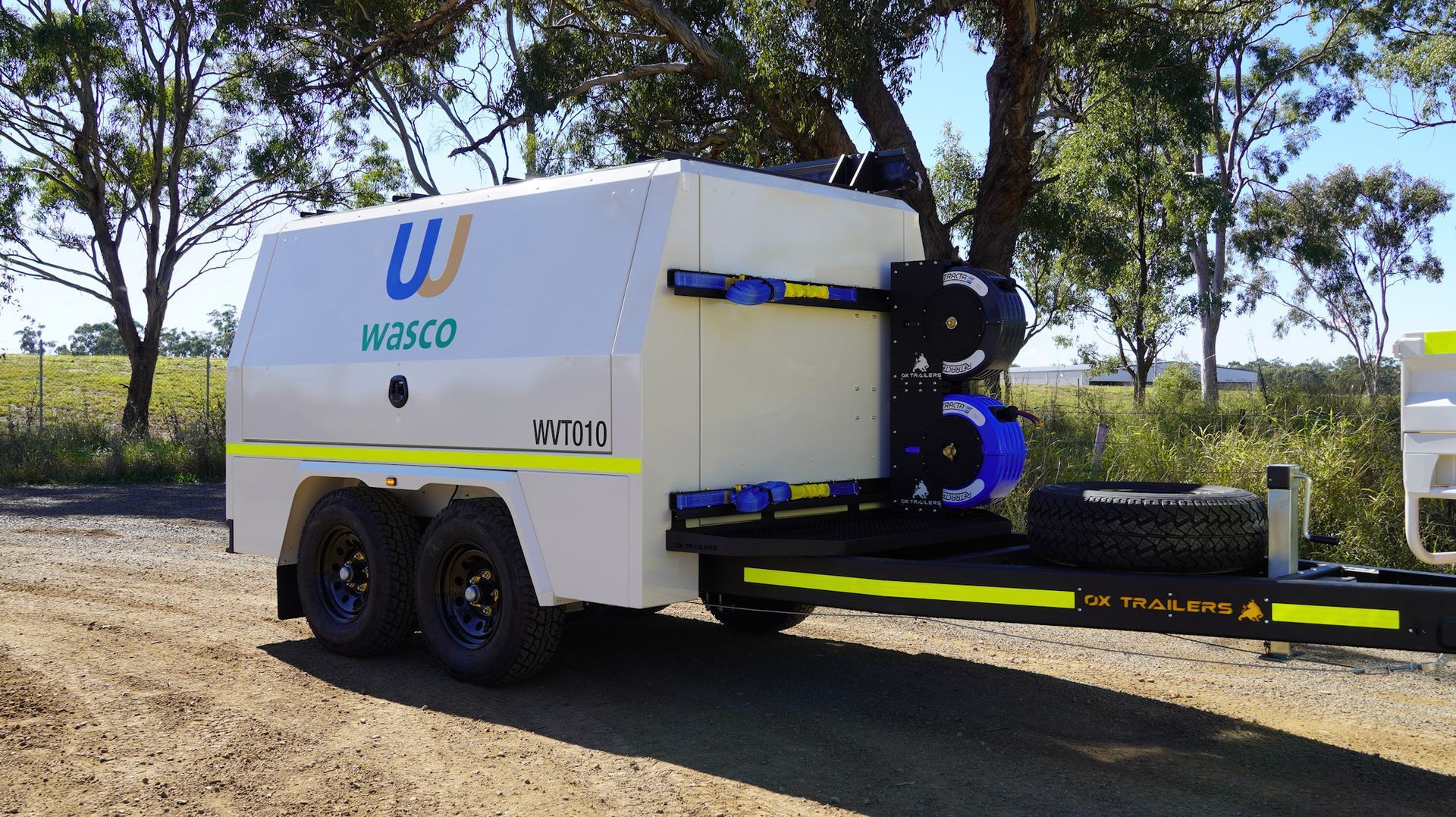

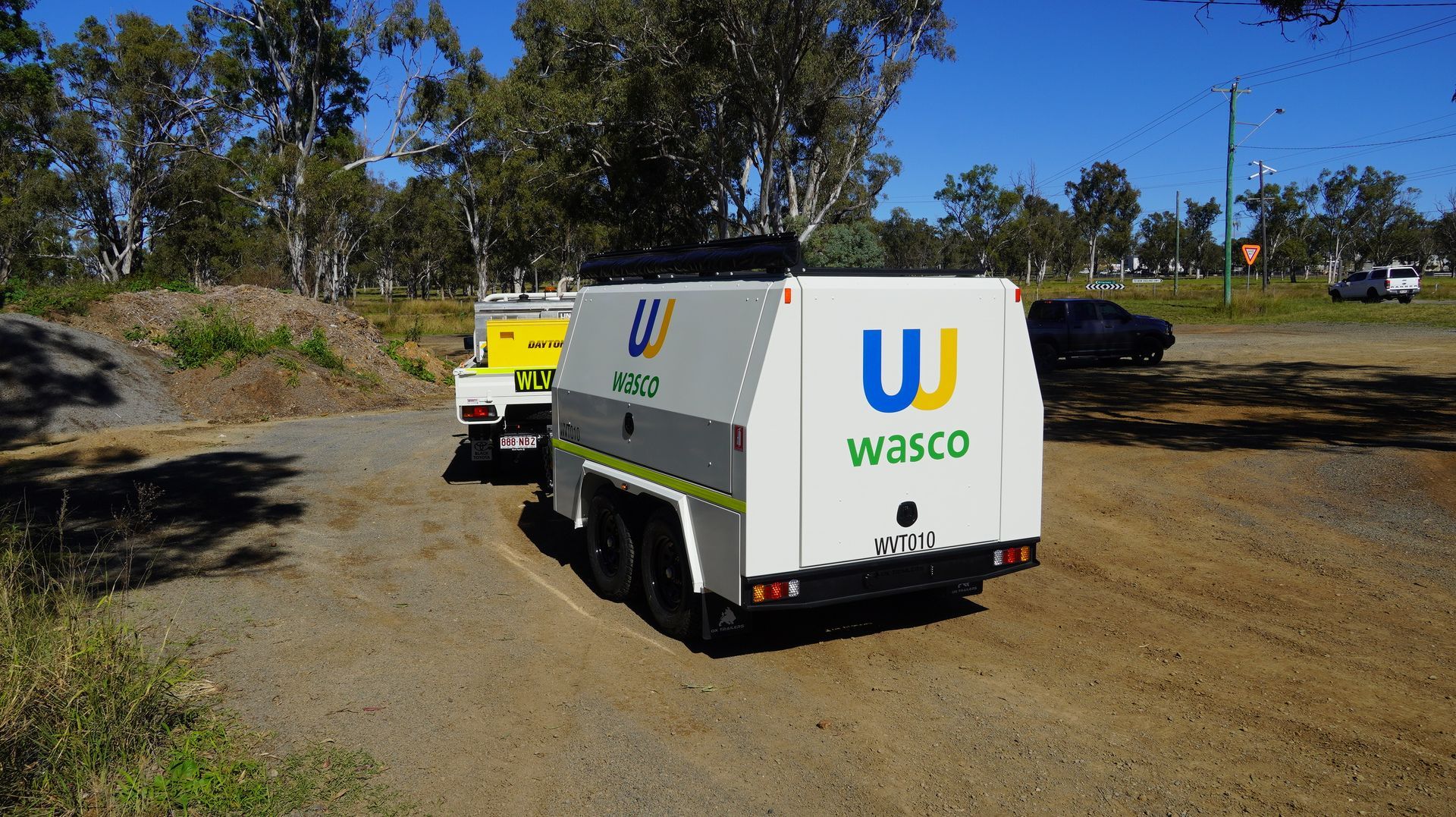

Custom built ox trailers service trailer for wsco australia on dirt road towed by a land cruiser

2.5mm Aluminium Fully Welded Monocoque Design

The canopy is fully monocoque, forged with CNC Laser Cut and folded 2.5mm aluminium plate.

Precision Laser Cut and CNC Folded Components

The entire canopy is designed to be laser cut and CNC folded to optimal accuracy.

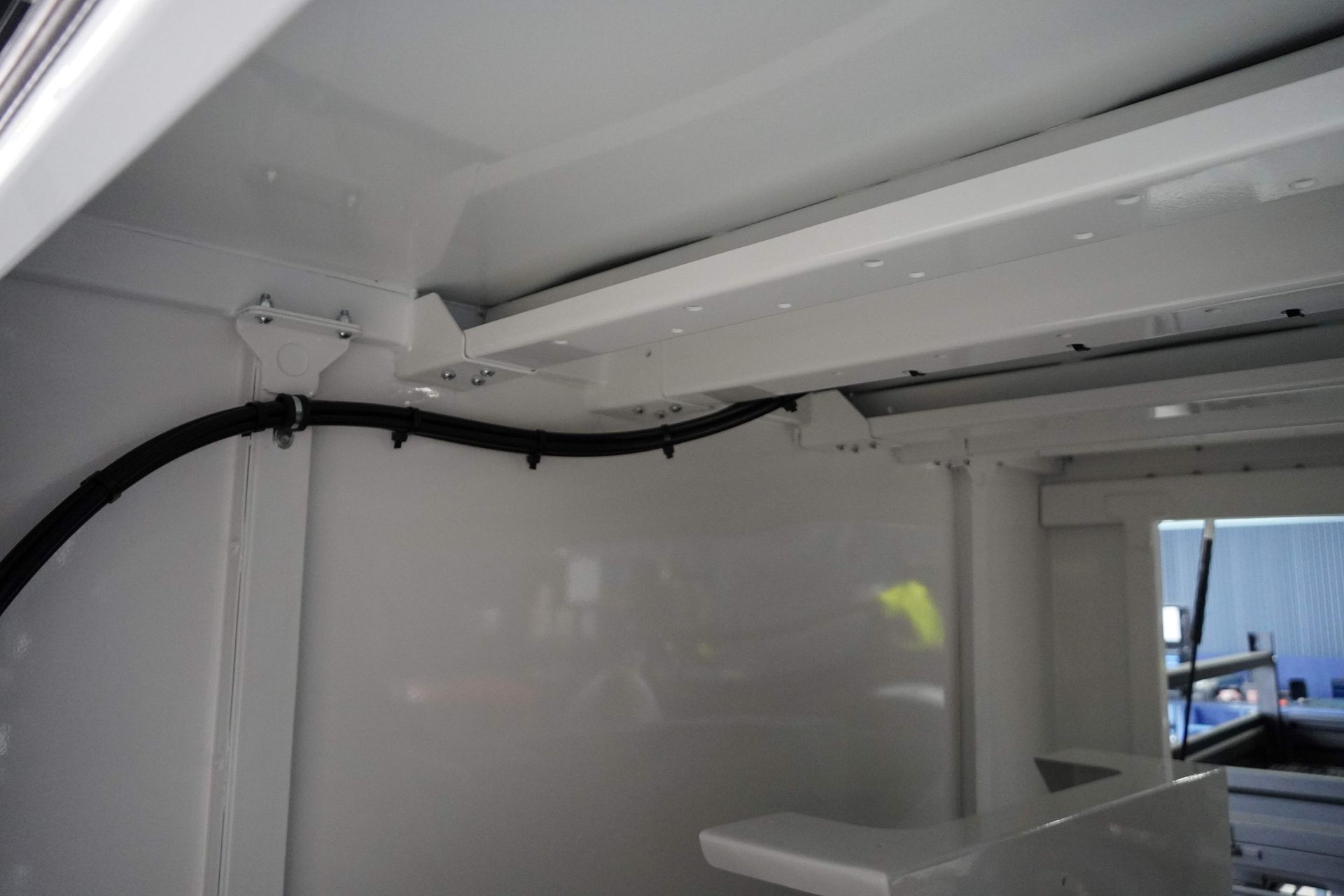

heavy duty internal wall and roof of an ox trailers service trailer with bracing designed to withstand rough use.

Internal Sheet Metal Bracing

The internal sheet metal bracing gives added rigidity for the doors and the internal structure of the canopy. This allows the canopy to support more load on the outside of the trailer, and protect the inside.

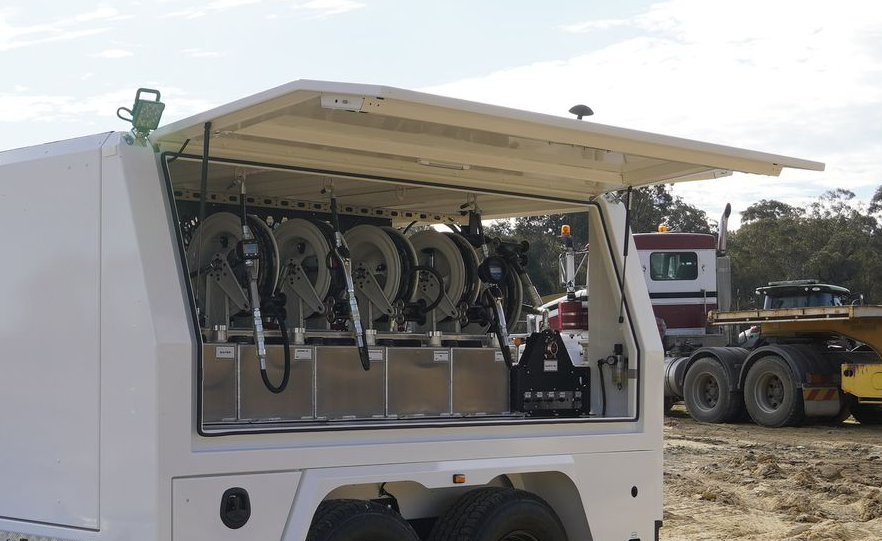

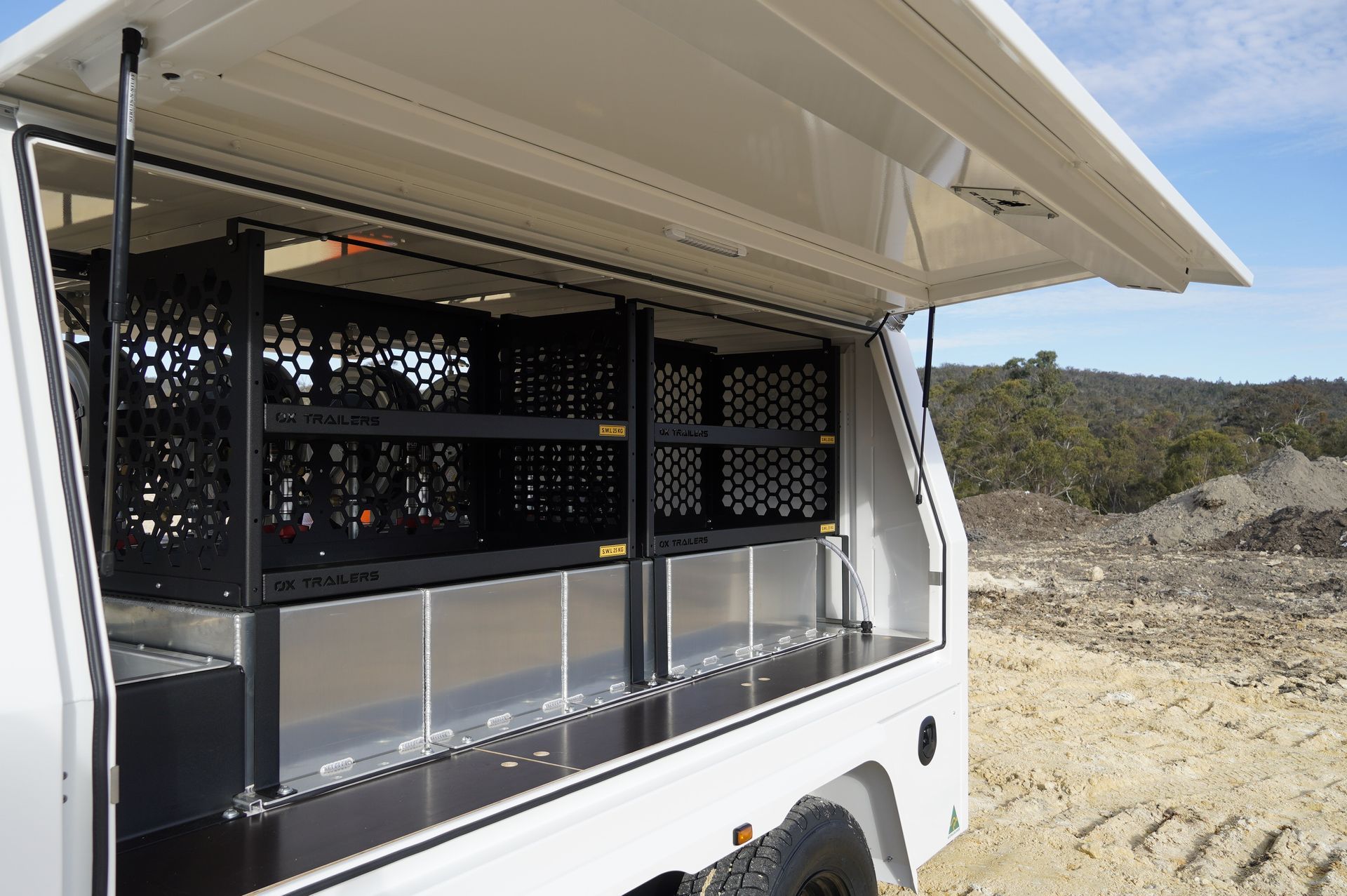

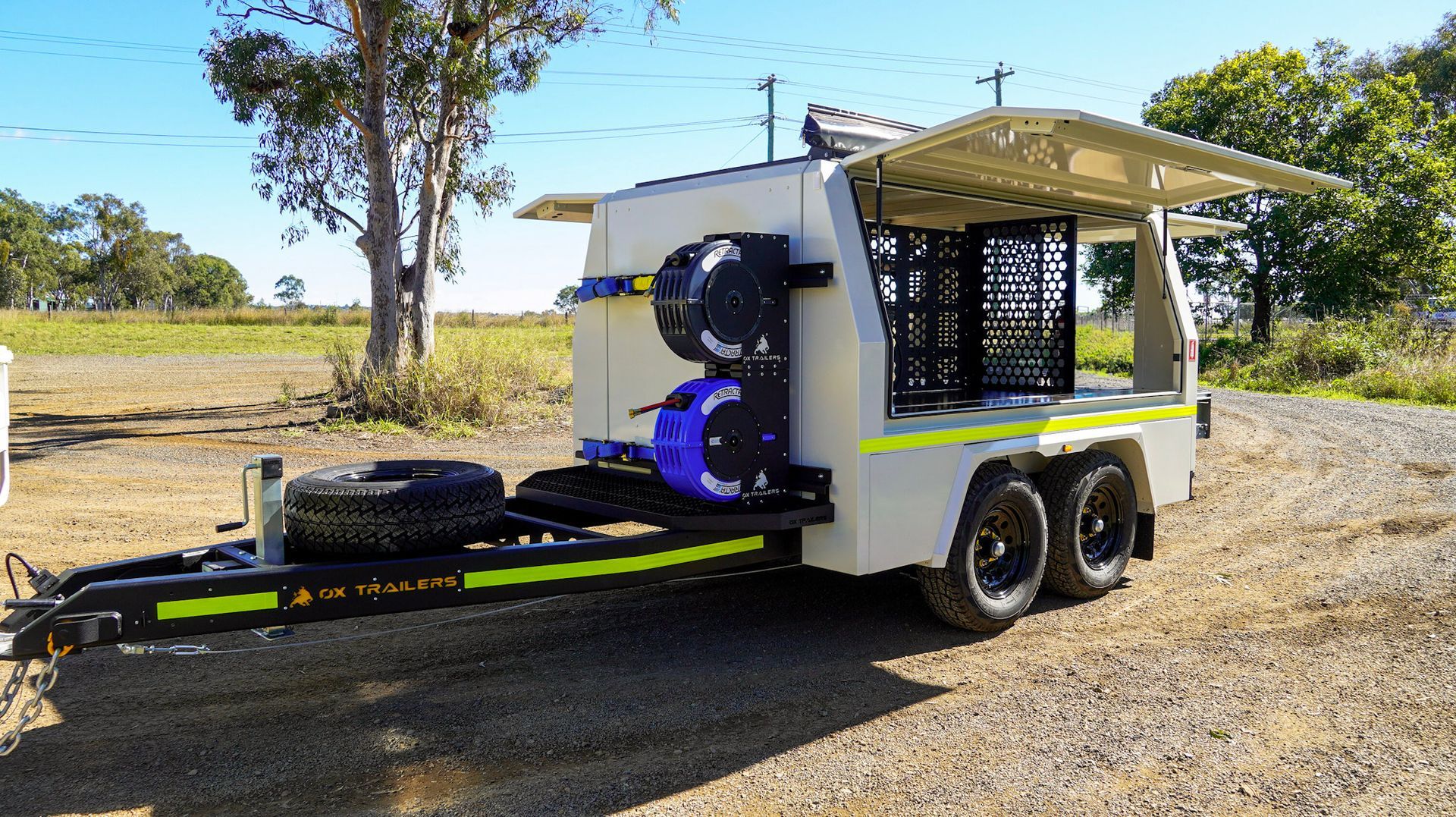

Reinforced side opening door on ox trailer service trailer, lockable and sealed for secure storage.

Reinforced side-opening doors.

The reinforced, side opening doors of the service trailer canopy have 2-point anti-theft locking for safe and secure equipment storage. These doors are fully sealed and are dust and water tight.

Rear Door

The reinforced, rear-opening door of the service trailer canopy has 2-point anti-theft locking for safe and secure equipment storage. These doors are fully sealed and are dust and water-tight.

Durable full length ox trailers door hinge for safe and secure mounting of doors.

Pinchweld Sealed Door with Integrated Hinge

The canopy doors are fitted with a pinchweld seal around the full opening and are secured via an integrated full length hinge.

OVERALL SIZE
The overall size of the Service Trailer is 568mm Long by 1990mm Wide.

The Canopy is 2890mm Long by 1920mm Wide by 1646mm High.
MOUNTING SYSTEM
Our unique spring mounting system reduces the shock/vibration distributed to the Aluminium canopy from the road conditions and is absorbed through this unique engineered mounting system. This reduces stress on the canopy, dramatically reducing cracking and fatigue over time.
MONOCOQUE DESIGN
The canopy is fully monocoque, forged with Laser Cut and CNC folded 2.5mm aluminium plate.
LASER CUT + CNC FOLDED
The entire canopy is designed to be laser cut and CNC folded to optimal accuracy.
INTERNAL SHEET METAL BRACING
The internal sheet metal bracing gives added rigidity for the doors and the internal structure of the canopy.
This allows the canopy to support more load on the outside of the trailer, and protect the inside.
SIDE OPENING DOORS
The reinforced, side-opening doors of the service trailer canopy have 2-point anti-theft locking and are fully sealed, dust and water-tight.
REAR DOOR
The reinforced, rear-opening door of the service trailer canopy has 2-point anti-theft locking and is fully sealed, dust and water-tight.
FULL LENGTH DOOR HINGE
The canopy doors are fitted with a pinchweld seal around the full opening and are secured via an integrated full length hinge.
