3500/4500 KG
AGGREGATE TRAILER MASS
1600 KG
TARE WEIGHT
125 KG
BALL WEIGHT
5 YR
STRUCTURAL WARRANTY

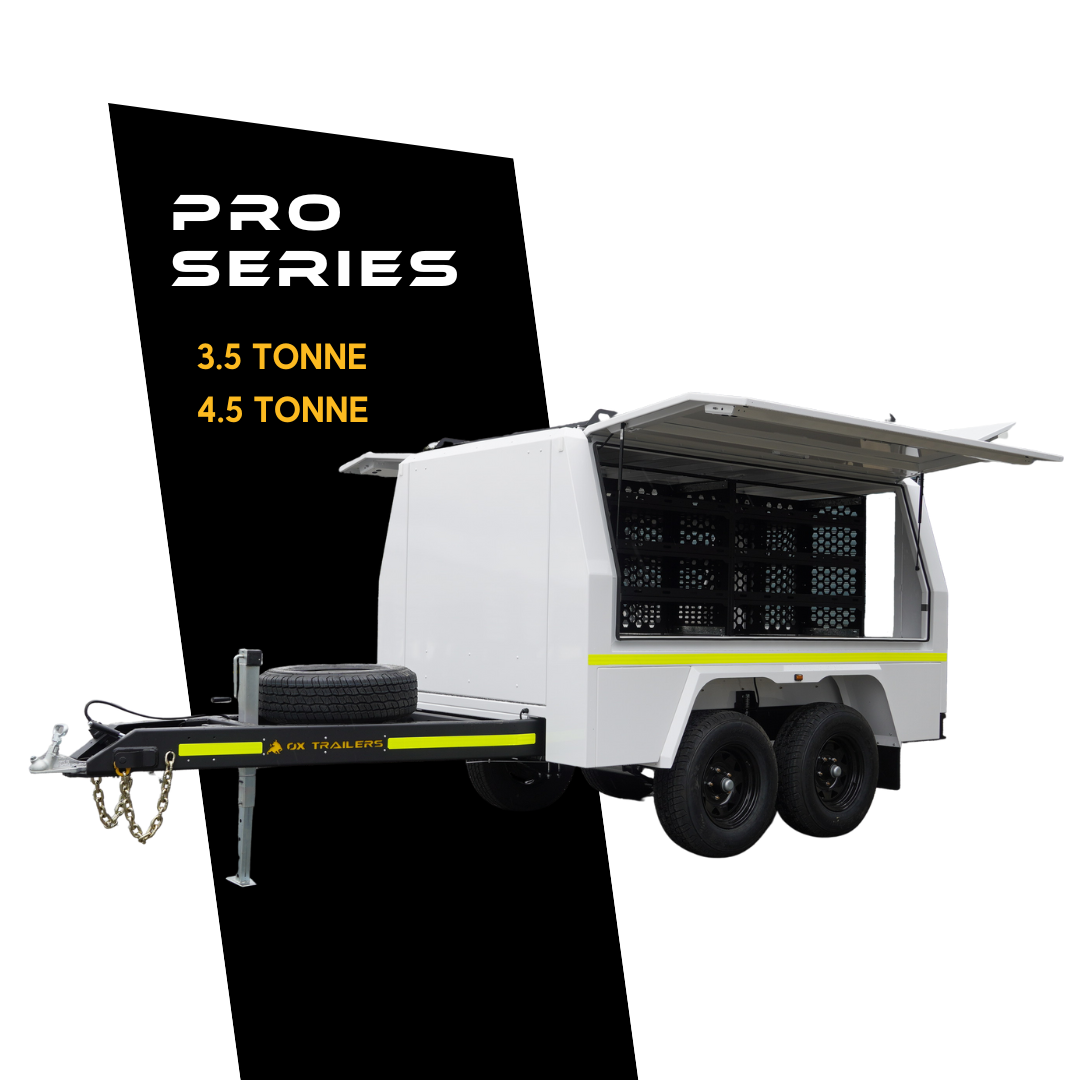

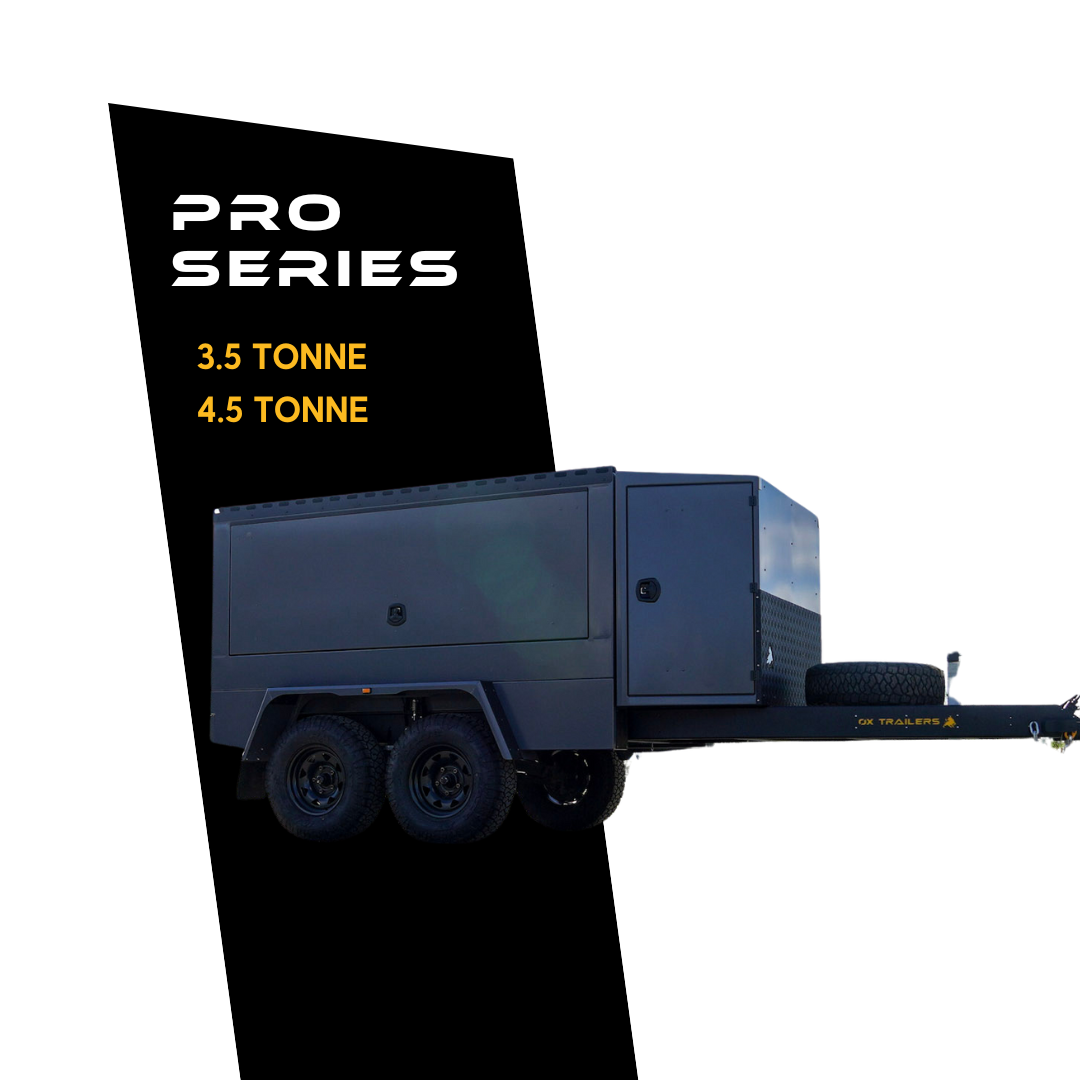

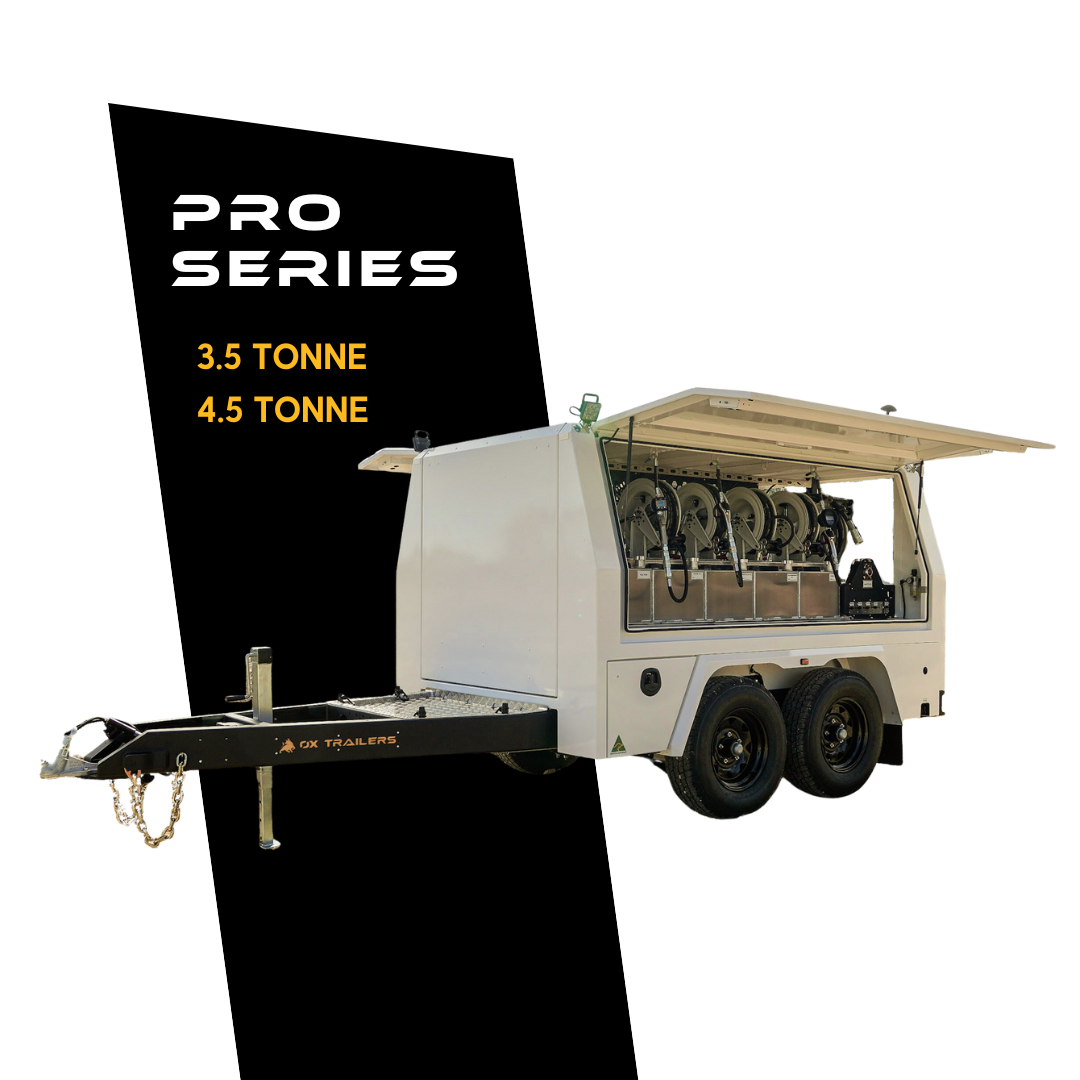

SERVICE TRAILER
Custom Tank Configurations

100% Australian Made

Delivery Australia Wide

SERVICE TRAILER
Heavy Duty Service Trailer; Designed to be Versatile and Durable for Off-Road Terrain
Delivery Australia Wide


3500/4500 KG
AGGREGATE TRAILER MASS
1600 KG
TARE WEIGHT
125 KG
BALL WEIGHT
3 YR
STRUCTURAL WARRANTY
THE
SPECS
The main design feature of the trailer chassis is the 5mm 350* grade steel, C-Section Channel that runs the full length of the trailer allowing the chassis to flex and move as it negotiates rough road terrain.
The fabricated chassis is made of
laser cut, CNC folded, 350 grade*, open chassis members allowing for easy wash down and cleaning, with no enclosed areas where mud, sand and salt can get trapped and cause corrosion.
*350 grade is higher tensile steel. Box Section is 300 grade and most C sections are 300.
TRAILER RUNNING GEAR
Load Sharing Leaf Spring Suspension Set
The Load Sharing Leaf spring suspension set ensures a safe and stable trailer on and off-road.
The load sharing system distributes weight evenly between the two wheels ensuring the load remains level and the weight strain isn't put on one wheel.

12 Inch Electric Drum Brakes
Electric drum brakes provide a safe and reliable braking solution.
We provide a 12-inch drum brake as these are heavy duty and robust.
5-Tonne Capacity Axle Set
65 x 65 SHS Axles with a 95mm Drop
Dual Row Taper Roller Bearings
Each trailer has 4 Dual Row Taper Roller Bearings.
These are 3000kg each, with a triple lip marine seal with a secondary O-Ring seal incorporated into the dust cap.
These come with a 3 year manufacturers warranty.
5 x Land Cruiser Wheels and All Terrain Tyres
Each trailer is fitted with All Terrain 235RI6 / 75 New Tyres.
These tyres are equipped with 16-inch wheels with a 5 Stud Landcruiser Pattern.

Ratchet Trailer Handbrake and 50mm Coupling
The 50mm Coupler comes standard with all 3500kgs ATM Trailers and is able to be swapped to a 70mm Coupler if registering the trailer at 4500kgs ATM.

Break-Away System
The trailer Break-Away System is the ultimate emergency brake. It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

Tail Lights, Clearance Lights and Number Plate Lights
Each trailer is installed with Multi-Volt LED Tail Lights, Clearance Lights + Number PLate Lights.
LOAD SHARING SUSPENSION
The Load Sharing Leaf spring suspension set ensures a safe and stable trailer for on and off-road.
The load sharing system distributes weight evenly between the two wheels ensuring the load remains level and the weight strain isn't put on one wheel.
DRUM BRAKES
Electric drum brakes provide a safe and reliable braking solution.
We provide a 12-inch drum brake as these are heavy duty and robust.
STEEL AXLES
The 3000kg 65mm Square steel axles result in a stronger, yet lighter suspension set-up.
The steel size of 65mm ensures the trailer can safely carry over 3000kg.
BEARINGS
Each trailer has 4 Dual Row Taper Roller Bearings.
These are 3000kg each, with a triple lip marine seal with a secondary O-Ring seal incorporated into the dust cap.
These come with a 3 year manufacturers warranty.
TYRES + WHEELS
Each trailer is fitted with All Terrain 235RI6 / 75 New Tyres.
These tyres are equipped with 16-inch wheels with a 5 Stud Landcruiser Pattern.
HANDBRAKE + COUPLING
The service trailer is fitted with a ratchet trailer handbrake as standard.
The 50mm Coupler comes standard with all 3500kgs ATM Trailers and is able to be swapped to a 70mm Coupler if registering the trailer at 4500kgs ATM.
BREAK-AWAY SYSTEM
The trailer Break-Away System is the ultimate emergency brake.
It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.
CANOPY CONSTRUCTION

Service Trailer Overall Size
The overall size of the Service Trailer is 568mm Long by 1990mm Wide.
The Canopy is 2890mm Long by 1920mm Wide by 1646mm High.
Service Trailer Spring Mounting System
Our unique mounting system reduces the shock/vibration distributed to the Aluminium canopy from the road conditions and is absorbed through this unique engineered mounting system. This reduces stress on the canopy, dramatically reducing cracking and fatigue over time.
2.5mm Aluminium Fully Welded Monocoque Design
The canopy is fully monocoque, forged with CNC Laser Cut and folded 2.5mm aluminium plate.
Precision Laser Cut and CNC Folded Components
The entire canopy is designed to be laser cut and CNC folded to optimal accuracy.
Internal Sheet Metal Bracing
The internal sheet metal bracing gives added rigidity for the doors and the internal structure of the canopy. This allows the canopy to support more load on the outside of the trailer, and protect the inside.

Reinforced side-opening doors.
The reinforced, side opening doors of the service trailer canopy have 2-point anti-theft locking for safe and secure equipment storage. These doors are fully sealed and are dust and water tight.

Rear Door
The reinforced, rear-opening door of the service trailer canopy has 2-point anti-theft locking for safe and secure equipment storage. These doors are fully sealed and are dust and water-tight.
Pinchweld Sealed Door with Integrated Hinge
The canopy doors are fitted with a pinchweld seal around the full opening and are secured via an integrated full length hinge.
OVERALL SIZE
The overall size of the Service Trailer is 568mm Long by 1990mm Wide.
The Canopy is 2890mm Long by 1920mm Wide by 1646mm High.
MOUNTING SYSTEM
Our unique spring mounting system reduces the shock/vibration distributed to the Aluminium canopy from the road conditions and is absorbed through this unique engineered mounting system. This reduces stress on the canopy, dramatically reducing cracking and fatigue over time.
MONOCOQUE DESIGN
The canopy is fully monocoque, forged with Laser Cut and CNC folded 2.5mm aluminium plate.
LASER CUT + CNC FOLDED
The entire canopy is designed to be laser cut and CNC folded to optimal accuracy.
INTERNAL SHEET METAL BRACING
The internal sheet metal bracing gives added rigidity for the doors and the internal structure of the canopy.
This allows the canopy to support more load on the outside of the trailer, and protect the inside.
SIDE OPENING DOORS
The reinforced, side-opening doors of the service trailer canopy have 2-point anti-theft locking and are fully sealed, dust and water-tight.
REAR DOOR
The reinforced, rear-opening door of the service trailer canopy has 2-point anti-theft locking and is fully sealed, dust and water-tight.
FULL LENGTH DOOR HINGE
The canopy doors are fitted with a pinchweld seal around the full opening and are secured via an integrated full length hinge.

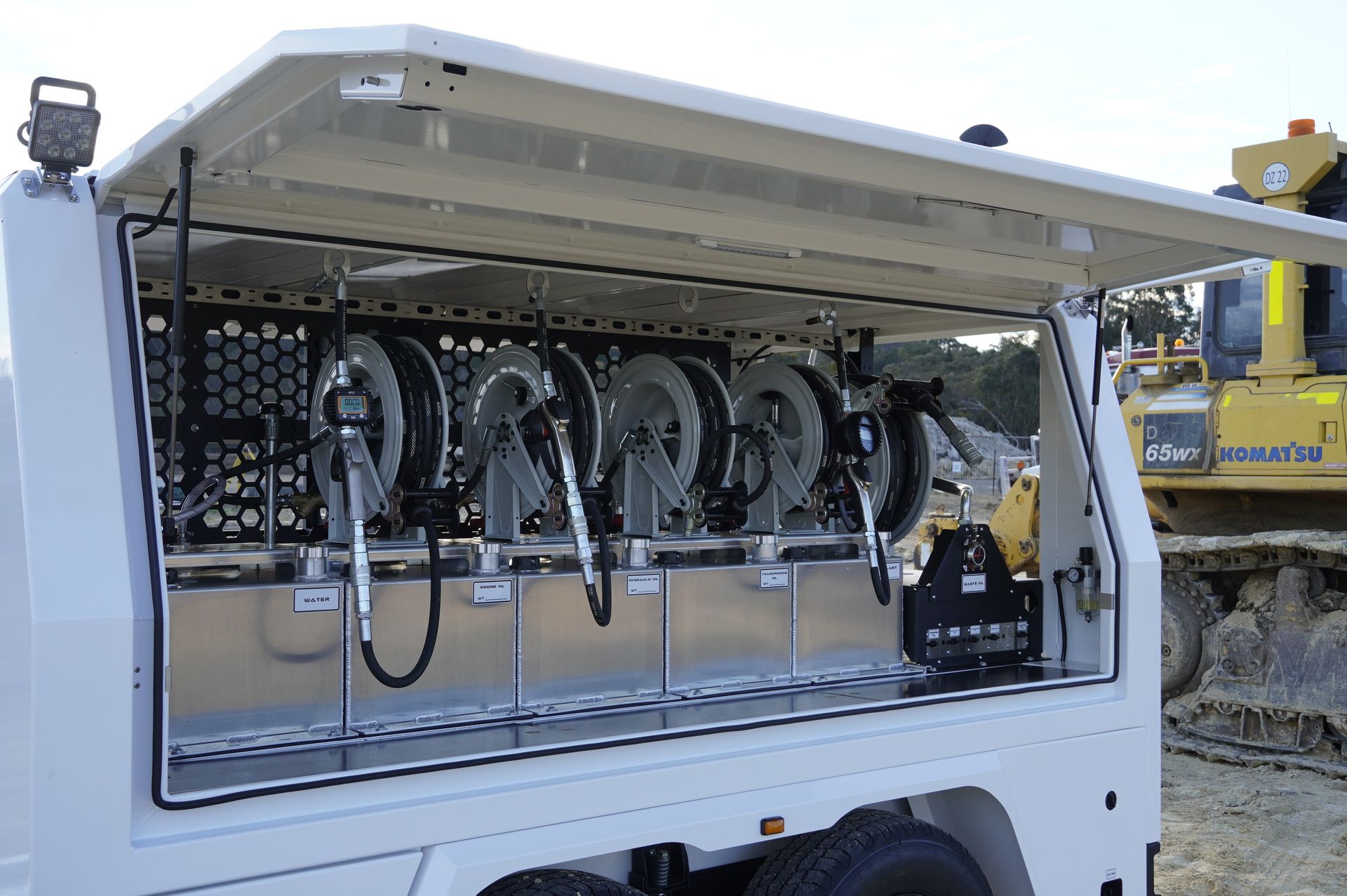

OPTIONAL TANKS + PUMPING KIT
Total Capacity of up to 1600L
The service trailer can be fitted with pressure tested tanks. These tanks have an inlet, outlet, level gauge & pump out point.
Configurations
- 5 x 210L new and 1 x 500L waste
- 6 x 210L new and 1 x 210L waste
- 105L tank options available

Integrated Bund to Encompass the Tanks
There is an integrated bund that encompasses the tanks and has a socket on the bottom for quick release.
Waste and New Hose Reels including Metered Hand Pieces
15m New hose reels attached to the Service Trailer new tanks.
20m Waste hose reel attached to the Service Trailer waste tank.
Digital preset metered hand guns attached to New 15m hose reels.
4-Way Evac valve attached to 20m Waste hose reel for pump-in-and-pump-out scenarios.

Air Operated New Pump and Large Diaphragm Waste Pump
The Service Trailer is equipped with a RAASM New Oil pump and a Waste Oil air-operated diaphragm pump, which comes in a variety of options.
- 3:1 Ratio
- 5:1 Ratio

PRESSURE TESTED TANKS
The service trailer can be fitted with pressure-tested tanks with a capacity of 1600L. These tanks have an inlet, outlet, level gauge & pump-out point.
Configurations:
- 5 x 210L new and 1 x 500L waste
- 6 x 210L new and 1 x 210L waste
- 105L tank options available
INTEGRATED BUND
There is an integrated bund that encompasses the tanks and has a socket on the bottom for quick release.

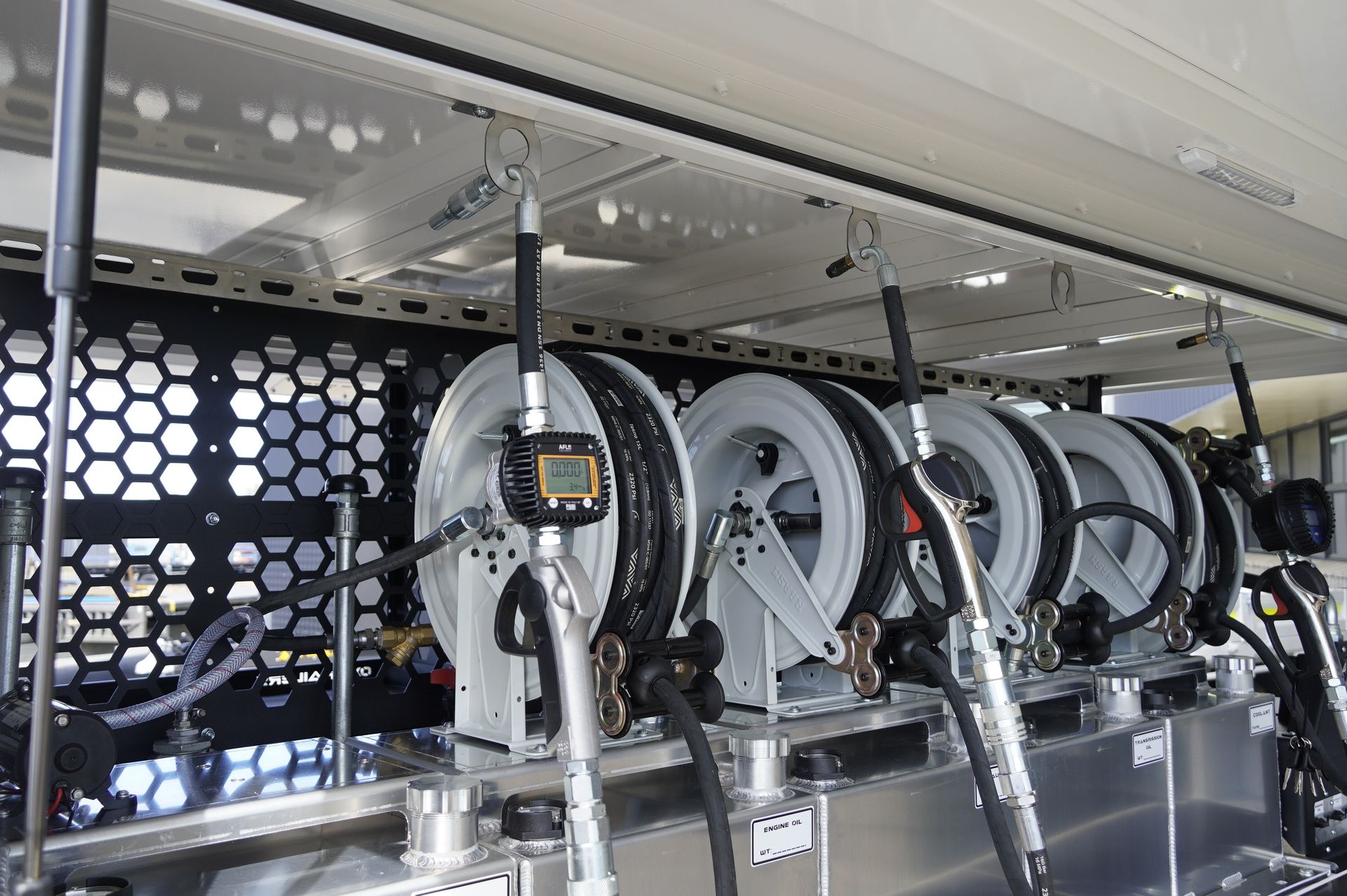

HOSE REELS + HAND PIECES
15m New hose reels attached to the Service Trailer new tanks.
20m Waste hose reel attached to the Service Trailer waste tank.
Digital preset metered hand guns attached to New 15m hose reels.
4-Way Evac valve attached to 20m Waste hose reel for pump-in-and-pump-out scenarios.

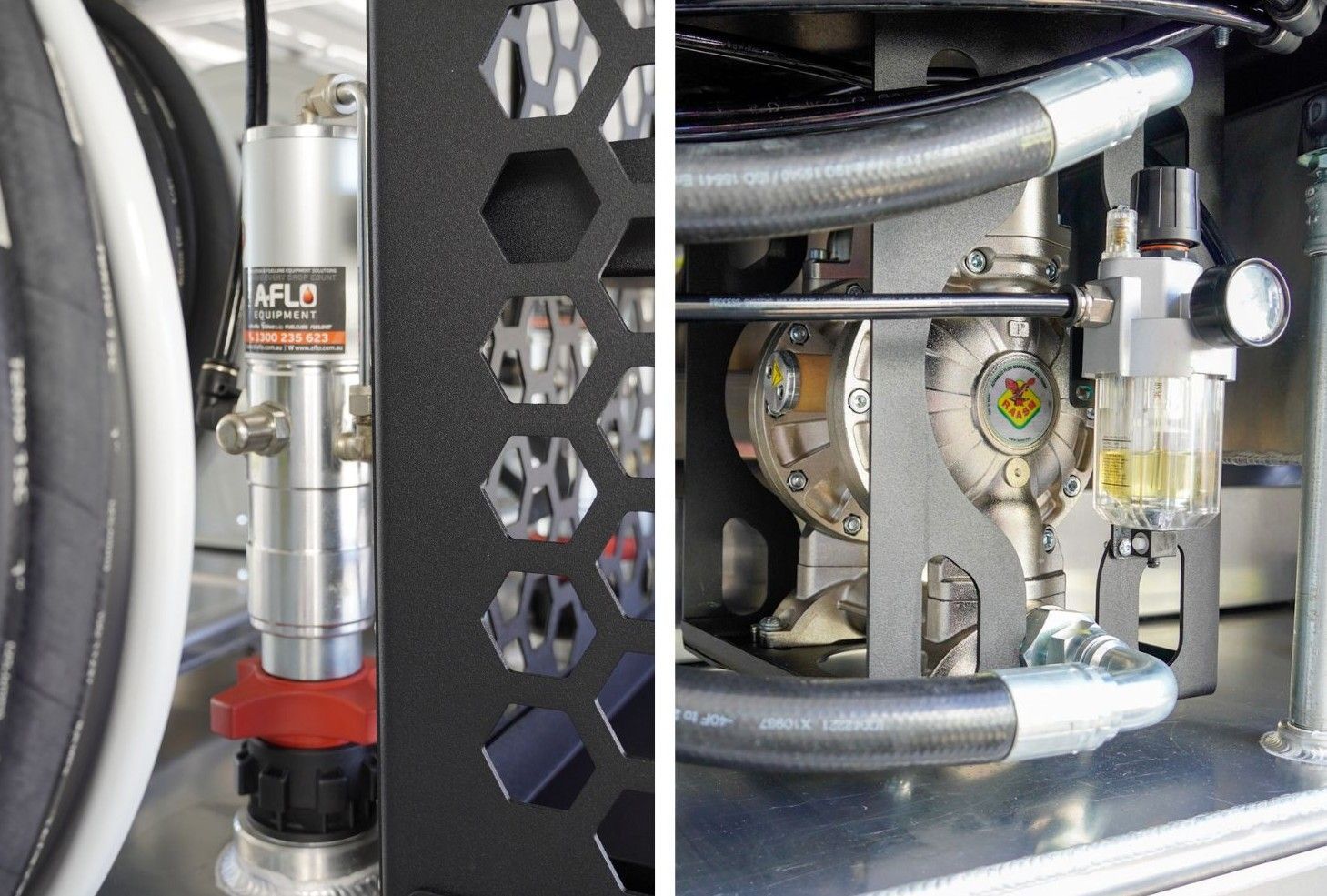

NEW OIL PUMP + WASTE PUMP
The Service Trailer is fitted out with Graco New Oil pump and a Waste Oil air-operated diaphragm pump, which comes in a variety of options.
- 3:1 Ratio
- 5:1 Ratio


Introducing the Lube Station by Ox Trailers. The only Australian-Made, customisable Lube Station in Australia.
HAVE YOU SEEN OUR LUBE STATIONS?

Heavy Duty Service Trailers. Built for Durability.
With over 20 accessories to choose from, these trailers can be your tailor made haulage solution.
See our brochure for a more detailed explanation of the options and accessories.

VIEW THE ACCESSORIES
75mm Pintle Hitch Upgrade
- 4.5T Rated
Cruise Master DO35/45 Coupling
ButtonIndependent Simplicity/Independent Coil Suspension
- Simplicity Axles Independent Load-sharing Leaf Suspension
- Ideal for off-road or rough terrain work
- Low-service/maintenance required
Maxxis Razr All-Terrain Tyre Upgrade
- 265/75/R16 All Terrain Tread
- Ideal for off-road or rough terrain work
Maxilamp C3XR Tail Light Upgrade
- Fitted, wired and tested
- ADR Approved
Drawbar Compressor Cabinet
- Ideal for compressor storage
- 1 Height adjustable shelf
- Central Locking option
- Side Swing doors for ease of access
- Watertight and Dust Resistant
- Internal Measurements of Door: 1080mm long by 600mm high.
Twin Pedestal Oil Hose Reels
ButtonGas Bottle Support Frame
ButtonDrawbar Mounted Plate
ButtonUnderbody Toolbox
- DSR & PSF or DSR & PSR
- Central locking option
- Watertight and Dust Resistant
Underbody Water Tank
- Plastic rust-free water storage
- 15L Volume
Compressor Fittings-Air/Water
Button12V Water Pump
Button4-Way Evacuation Valve
- Max Working Pressure - 200psi (14 Bar)
- Inlet/Outlet connection (BSP)
105L, 210L and/or 520L Aluminium Tanks
- 100L, 215L and/or 500L Aluminium Tank with Level Gauge, 50NB BSP Fill Point & Breather
- Integrated bund to encompass tank/s
New Oil Hose Reel
- Hose Size - 12.4mm x 15m
- Hose Type - Oil & Coolant
Waste Oil Hose Reel
- Hose Size - 19mm x 15m
- Hose Type - Oil & Coolant
RAASM Oil Pump
- 3:1 or 5:1 Ratio
- Maximum pump free flow rate of 35L/min
- Max fluid oulet pressure of 420psi
Pneumatic Diaphragm Pump
- Flow Rates of up to 48L/min
- Max working pressure of 120psi (8 bar)
- Max delivery per cycle of 120ml
- Max air consumption of 400L/min
Oil Control Gun/s
- 5 Digit meter moulded directly into the gun
- 1/2" BSP (F) inlet swivel
- Max pressure up to 6900kPa (1000psi)
Oil Filter Drainage System
- Fitted to Waste Oil Tank
- Angular channels to support filters whilst draining
Pneumatic RAASM 20kg Grease Kit
- High pressure grease control gun
- 18m Reel
- Grease control valve with rigid outlet + heavy duty 3 jaw coupler
- Air pressure operating range from 20psi to 140psi
Internal Shelving + Dividers
ButtonCompressor
- Diesel/ULP Compressors
- Rotary Screw and Piston Air Compressor options
- Electric Start
- 20CFM to 35CFM options
- Exhaust plumbed through floor and external fuel fill point
External Lighting
- 1 Lux @114.5m
- 1P68 rated
- Fitted to Roof Rails
Internal Lighting
Button4.5kg ABE Dry Powder Fire Extinguisher
- Vehicle mount bracket
- Operating Pressure: 11 Bar
- Full Weight: 7.4kg
Bluetooth Brake Controller Kit
- ElecBrakes
- A trailer mounted solution that is compatible with any tow vehicle
- Complete with custom presets and a smooth proportional brake control
Full Length Awning
ButtonRoof Rack
- Heavy Duty
- Tie Rails PS/DS
- SWL: 100kg
Front/Rear Recovery Points
- 1 x Front Recovery Point
- 2 x Rear Recovery Points
- Weight rating of 4500kg
Mine Spec Kit
- Set of 20
- Important Mine Safety Feature
Spill Kit
- Oil and Fuel Spill Kit 50L
SDS Station
- Document storage box
Custom Signwriting
- Submit your designs to the team to add your brand to your Ox Trailer
12 Month Registration
- Valid for 12 months
- All documents, certificates and receipts supplied and registered in your name
THE
ACCESSORIES
75mm Pintle Hitch Upgrade
- 4.5T Rated
Cruise Master DO35/45 Coupling
ButtonIndependent Simplicity/Independent Coil Suspension Upgrade
- Simplicity Axles Independent Load-sharing Leaf Suspension
- Ideal for off-road or rough terrain work
- Low-service/maintenance required
Maxxis Razr All-Terrain Tyre Upgrade
- 265/75/R16 All Terrain Tread
- Ideal for off-road or rough terrain work
Maxilamp C3XR Tail Light Upgrade
- Fitted, wired and tested
- ADR Approved
Drawbar Compressor Cabinet
- Ideal for compressor storage
- 1 Height adjustable shelf
- Central Locking option
- Side Swing doors for ease of access
- Watertight and Dust Resistant
- Internal Measurements of Door: 1080mm long by 600mm high.
Gas/Compressor Air Reel
ButtonGas Bottle Support Frame
ButtonUnderbody Water Tank
- Plastic rust-free water storage
- 15L Volume
Compressor Fittings - Air/Water
ButtonPneumatic Diaphragm Pump
Button4-Way Evacuation Valve
Button105L, 210l and/or 520L Tanks
ButtonNew Oil Hose Reel
ButtonWaste Oil Hose Reel
ButtonRAASM Oil Pump
- 3:1 or 5:1 Ratio
- Maximum pump free flow rate of 35L/min
- Max fluid oulet pressure of 420psi
Drawbar Mount Plate for Equipment
ButtonOil Control Guns
ButtonOil Filter Drainage Station
ButtonPneumatic RAASM 20kg Grease Kit
- High pressure grease control gun
- 18m Reel
- Grease control valve with rigid outlet + heavy duty 3 jaw coupler
- Air pressure operating range from 20psi to 140psi
Internal Shelving and/or Dividers
ButtonCompressor
- Diesel/ULP Compressors
- Rotary Screw and Piston Air Compressor options
- Electric Start
- 20CFM to 35CFM options
- Exhaust plumbed through floor and external fuel fill point
External Lighting
Button4.5kg ABE Dry Powder Fire Extinguisher
- Vehicle mount bracket
- Operating Pressure: 11 Bar
- Full Weight: 7.4kg
Bluetooth Brake Controller Kit
- ElecBrakes
- A trailer mounted solution that is compatible with any tow vehicle
- Complete with custom presets and a smooth proportional brake control
Roof Rack
- Heavy Duty
- Tie Rails PS/DS
- SWL: 100kg
Front/Rear Recovery Points
- 1 x Front Recovery Point
- 2 x Rear Recovery Points
- Weight rating of 4500kg
Mine Spec Kit
ButtonSDS Station
- Document storage box
Custom Signwriting
- Submit your designs to the team to add your brand to your Ox Trailer
QLD 12 Month Registration
- Valid for 12 months
- All documents, certificates and receipts supplied and registered in your name
