Box Trailers | Strength and Versatility with Ox Trailers

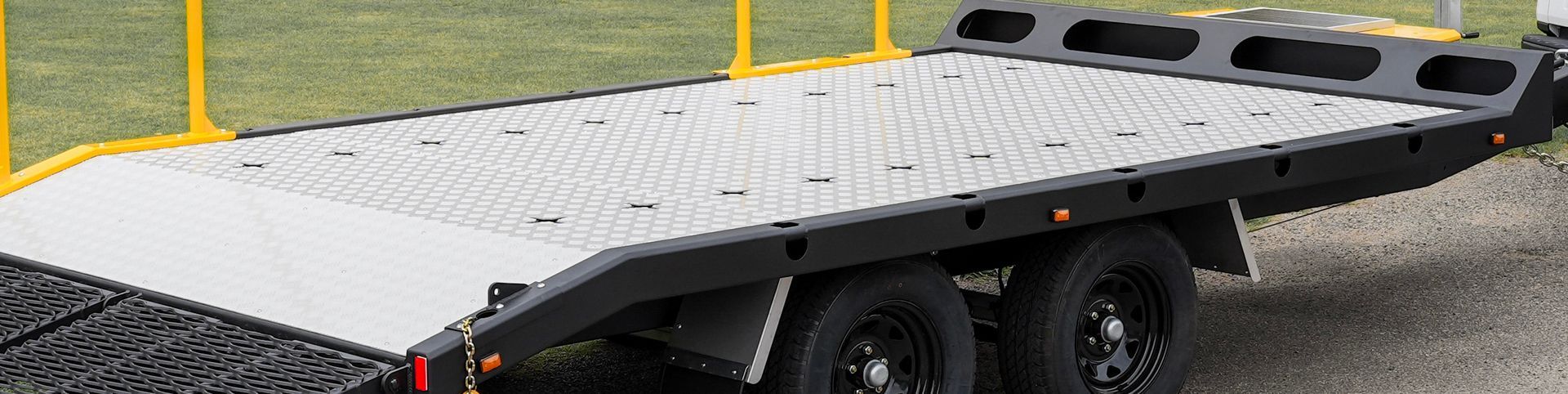

The main design feature of the fabricated chassis is the C-Section Channel that runs the full length of the trailer allowing the chassis to flex and move as it negotiates rough road terrain.

The C-Section fabricated chassis is made of laser cut, CNC folded, 350 grade*, open chassis members allowing for easy wash down and cleaning, with no enclosed areas where mud, sand and salt can get trapped and cause corrosion.

*350 grade is higher tensile steel. Box Section is 300 grade and most C sections are 300.

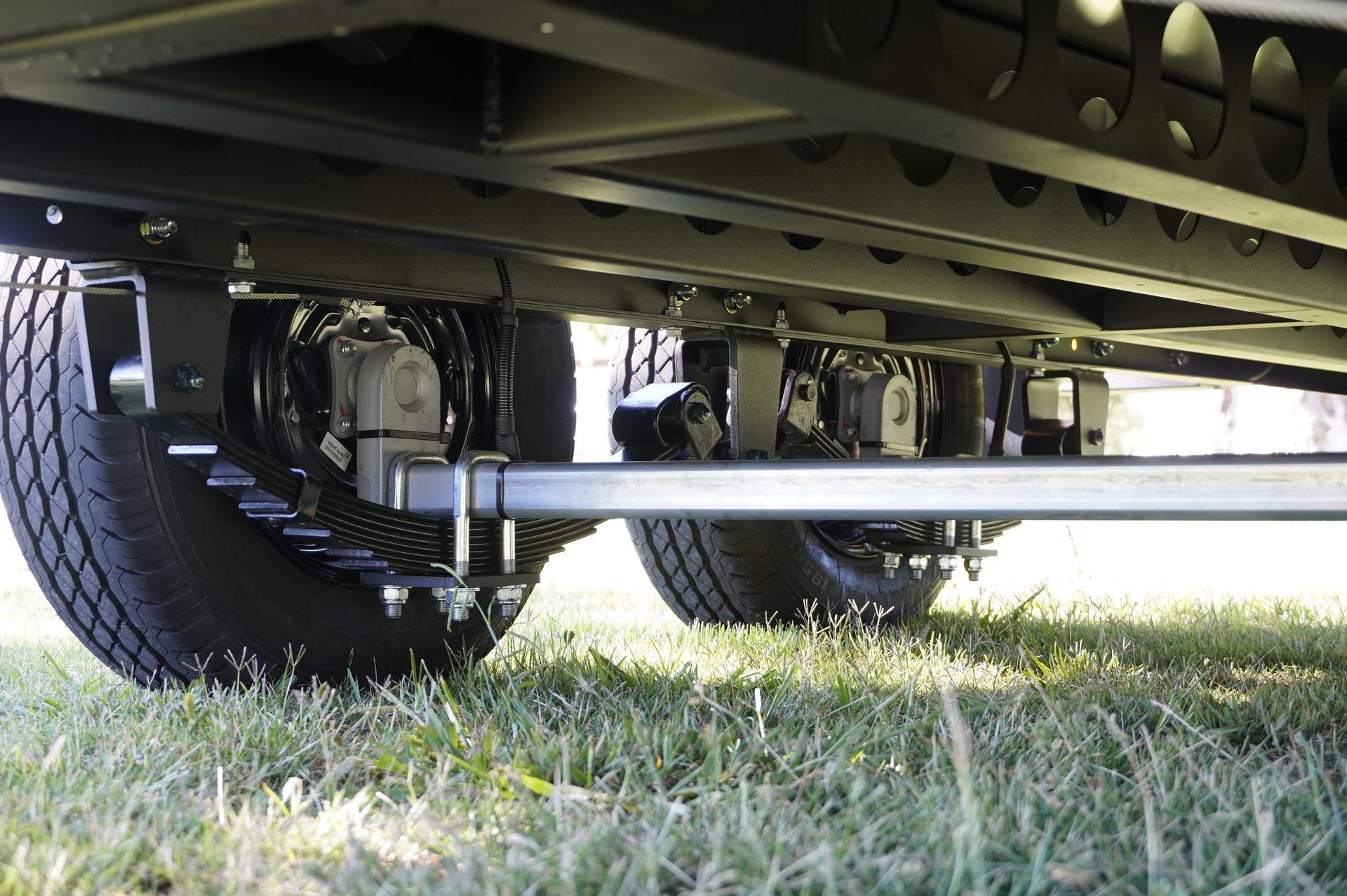

3.5T Tandem Axle Suspension Kit

The Load Sharing Leaf Spring Suspension Set ensures a safe and stable trailer on and off-road.

The load-sharing system distributes weight evenly between the two wheels, ensuring the load remains level and the weight strain isn't put on one wheel.

4 - 10-Inch Electric Drum Brakes

Electric Drum Brakes provide a safe and reliable braking solution.

We provide a 12-inch drum brake as these are heavy-duty and robust.

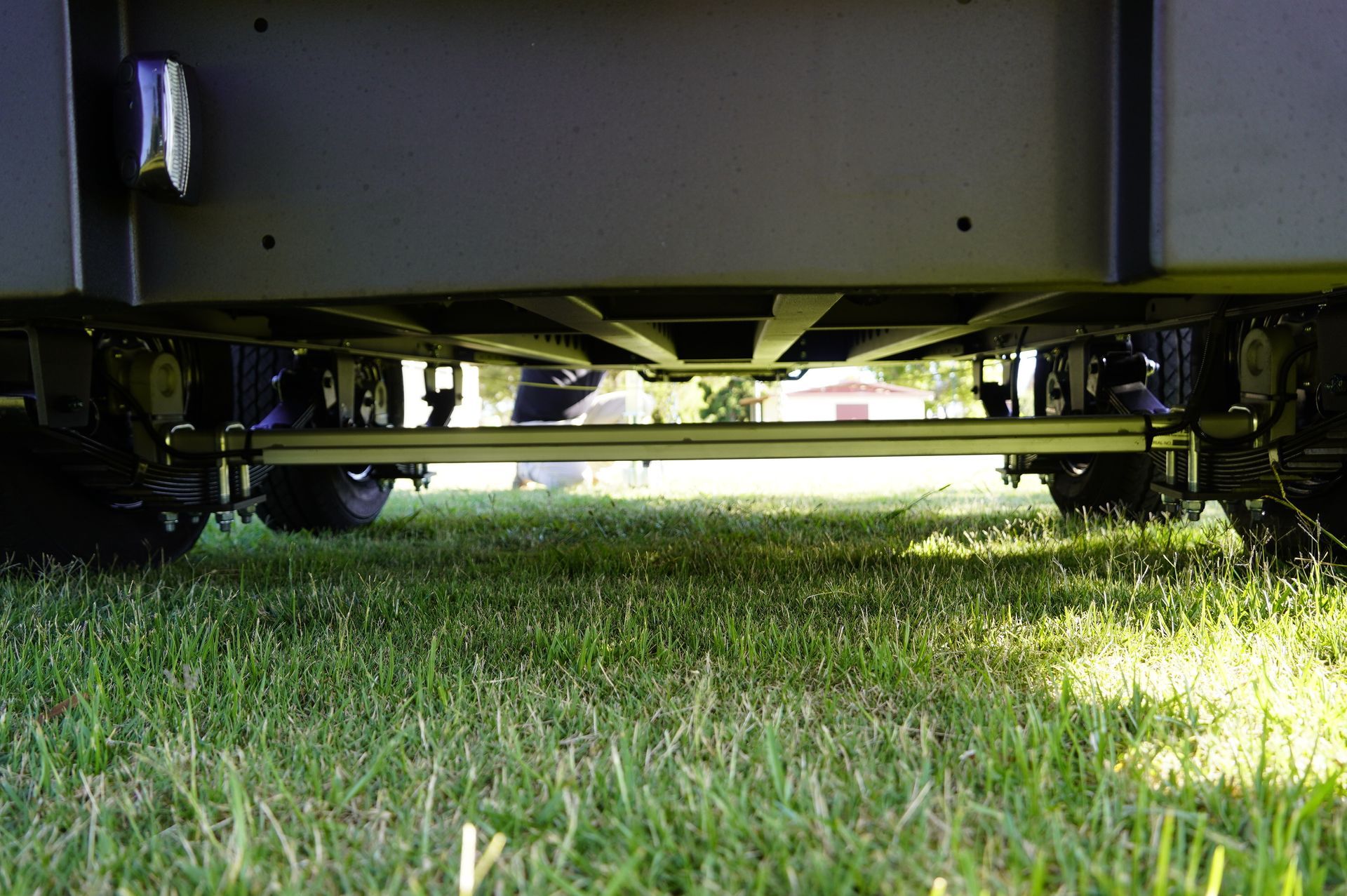

2 - 1800kg 50mm Straight Square Axles

3.5T Tandem Straight Axle Set.

Dual Row Taper Roller Bearings

Each trailer has 4 x 1800kg Dual Row Taper Roller Bearings

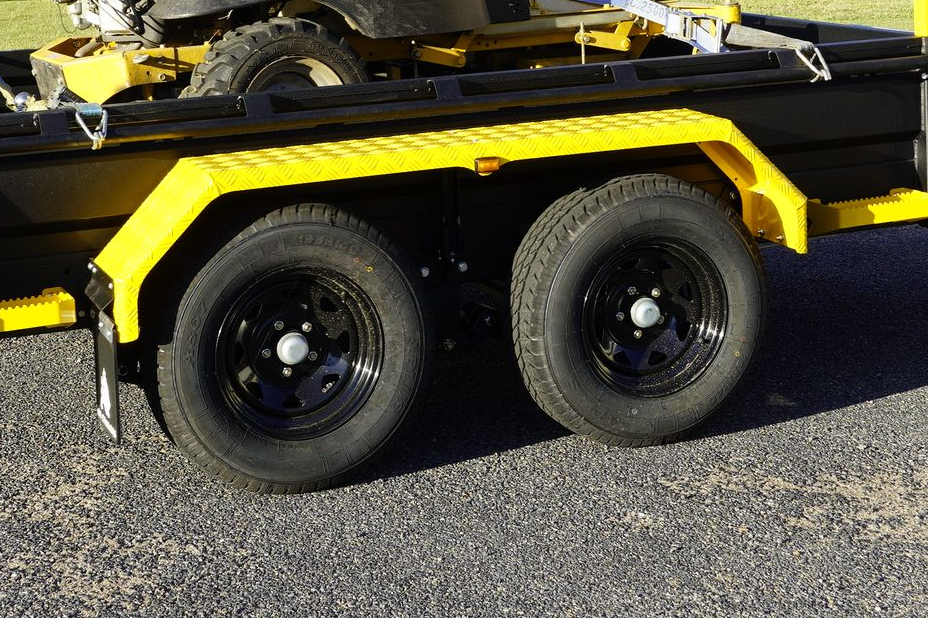

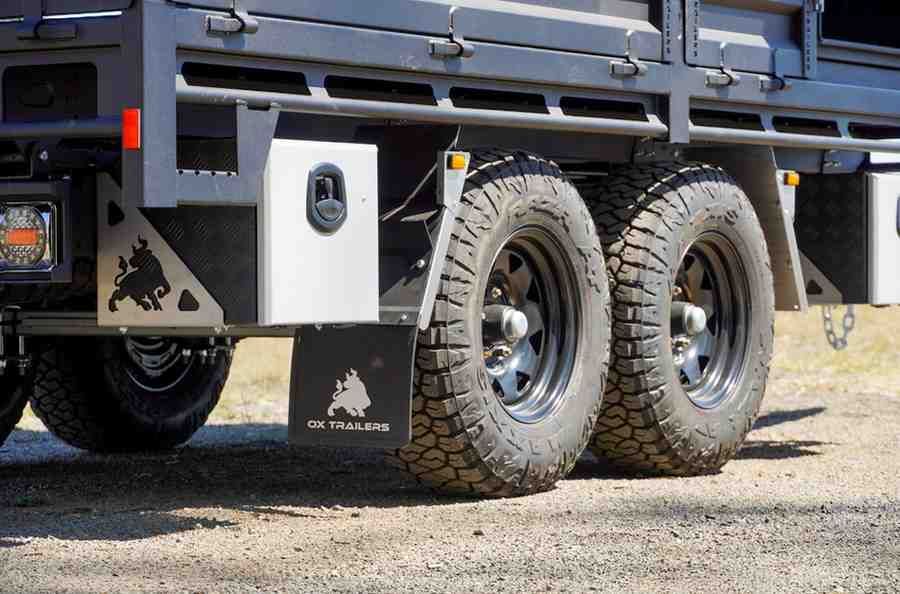

14 Inch Wheels, 5 Stud Ford Pattern and All Terrain 195/R14C New Tyres

Each trailer is fitted with All Terrain 195/R14C New Tyres

These tyres are equipped with 14-inch wheels with 5 Stud Ford Pattern Steel Rims.

Also available, on the 4.5 ATM trailers:

All Terrain 235RI6 / 75 New Tyres, with 4 fitted to the axles and the 5th at the front of the trailer as spare.

These tyres are fitted with 16-inch wheels with 5 Stud Landcruiser Pattern.

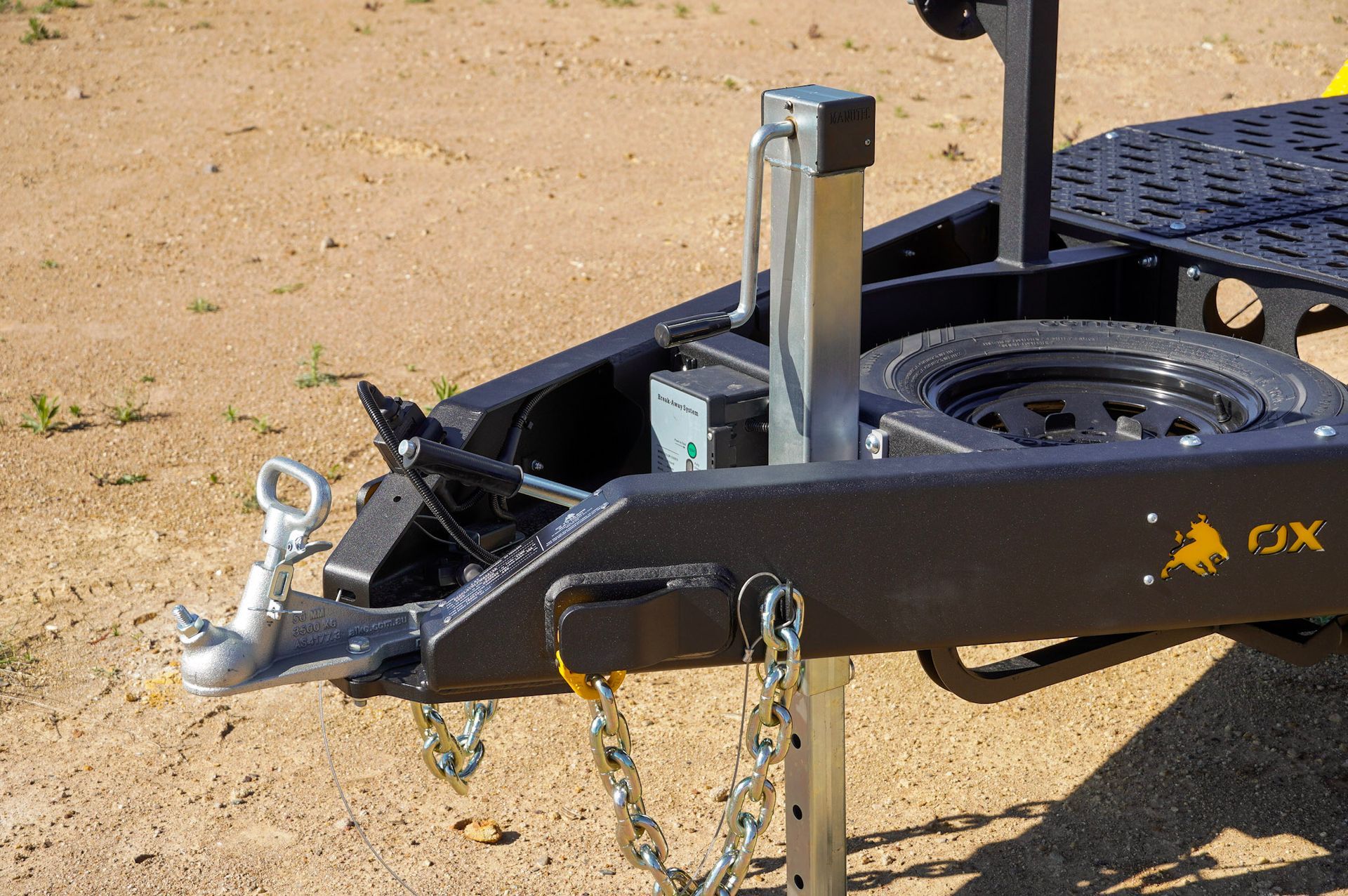

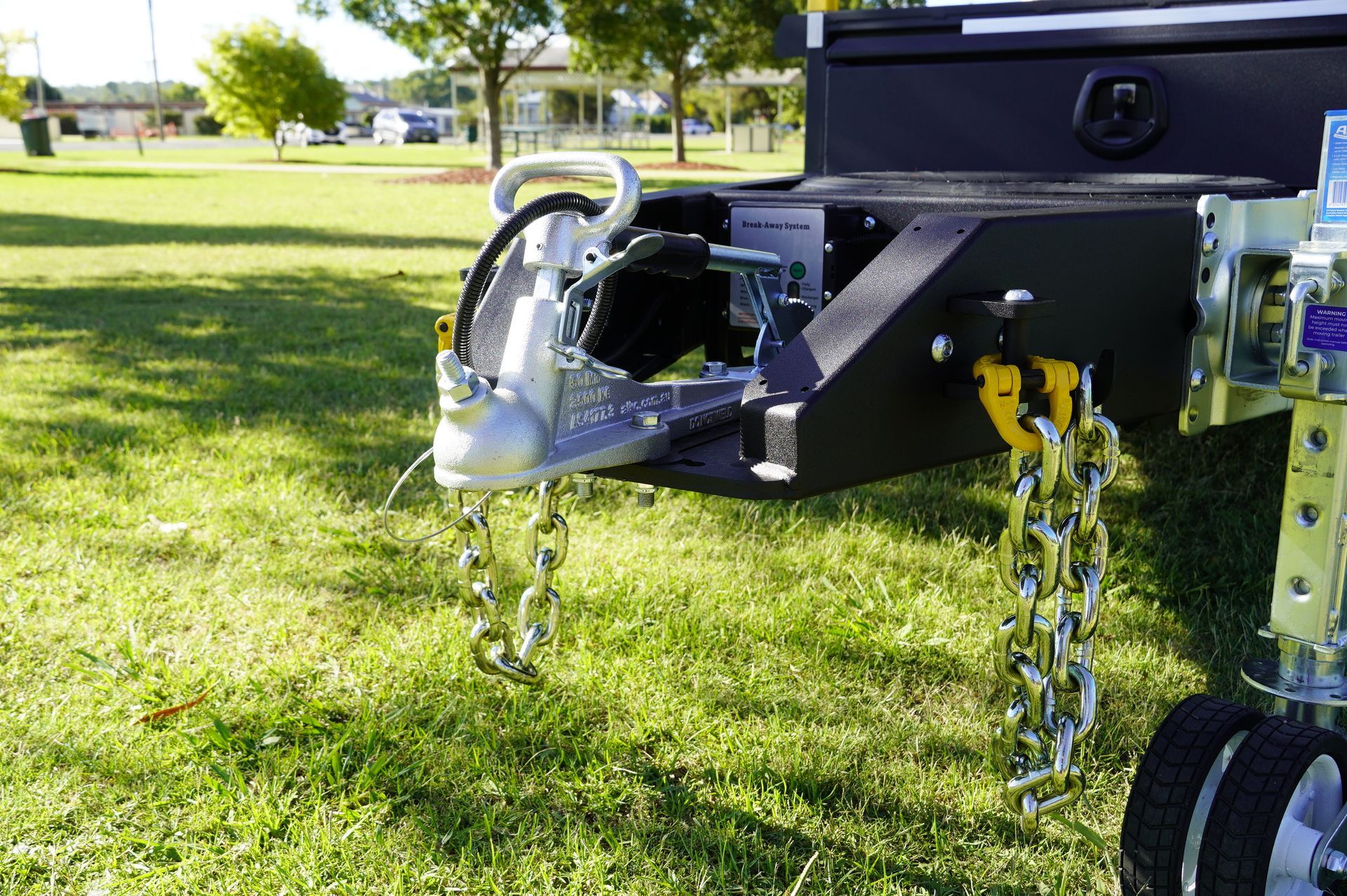

Ratchet Trailer Handbrake and 50mm Coupling

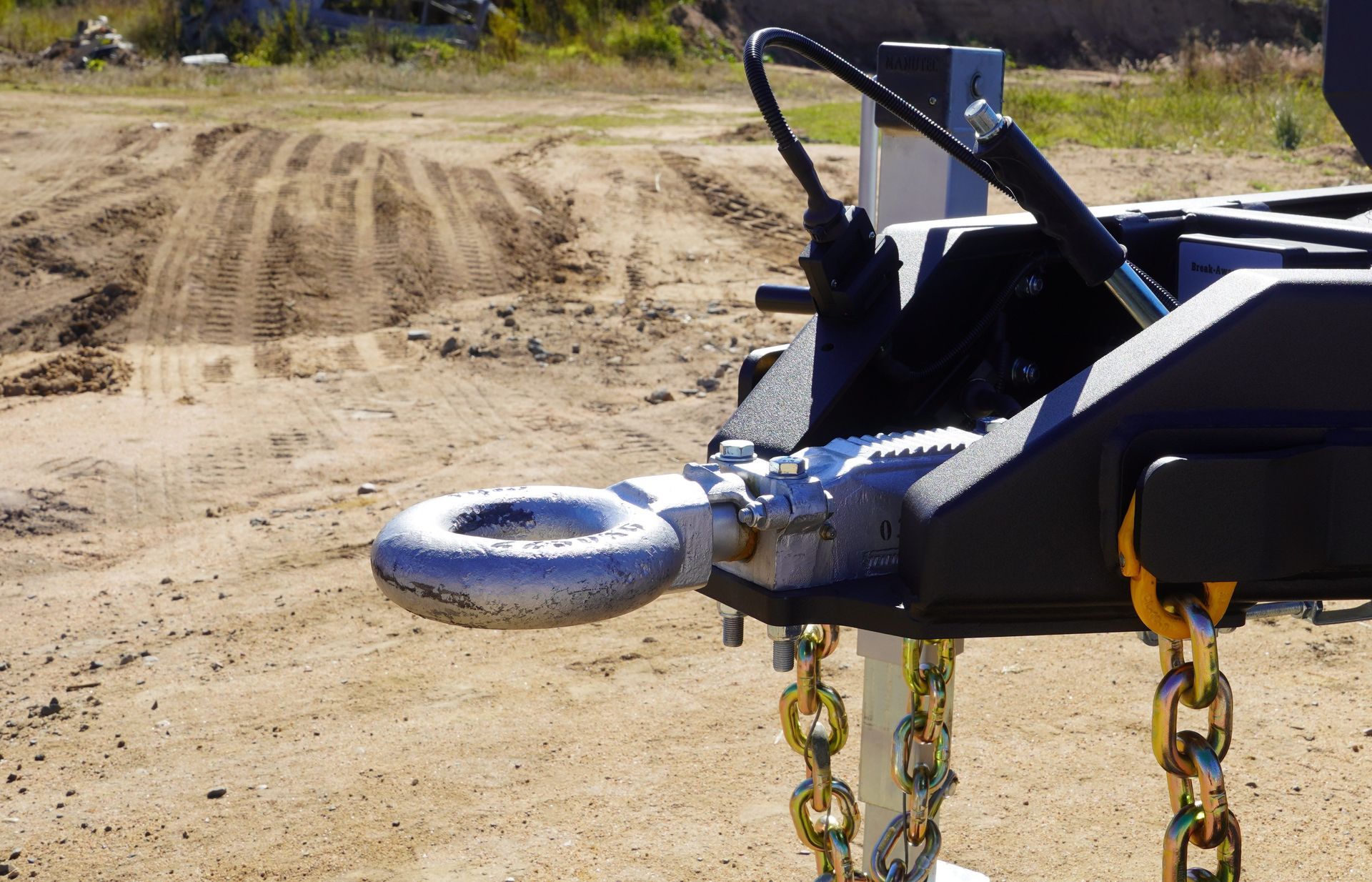

The Deck Over Trailer is fitted with a Ratchet Trailer Handbrake and 50mm Coupling as standard on 3.5t ATM trailers, 70mm on 4.5t ATM trailers.

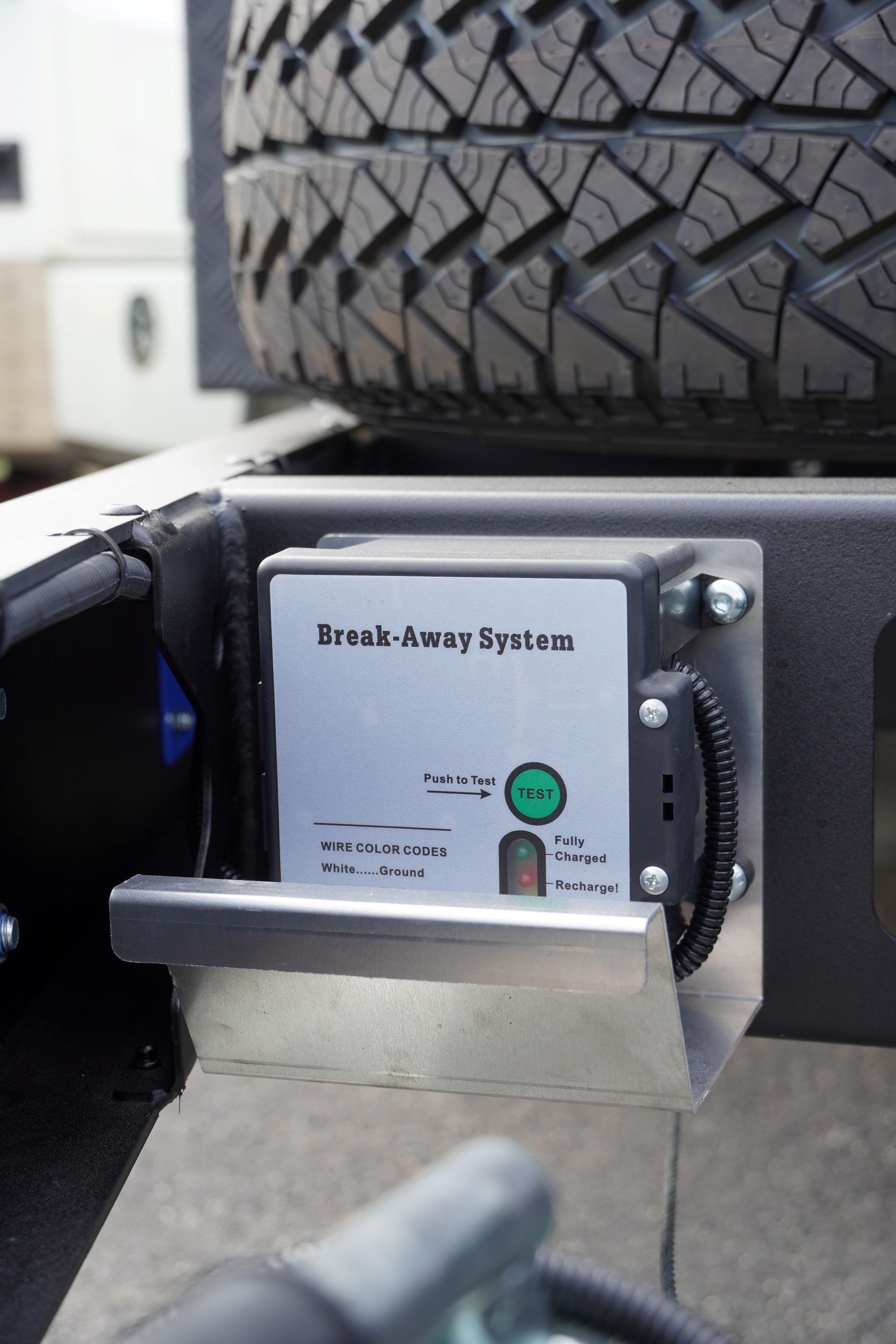

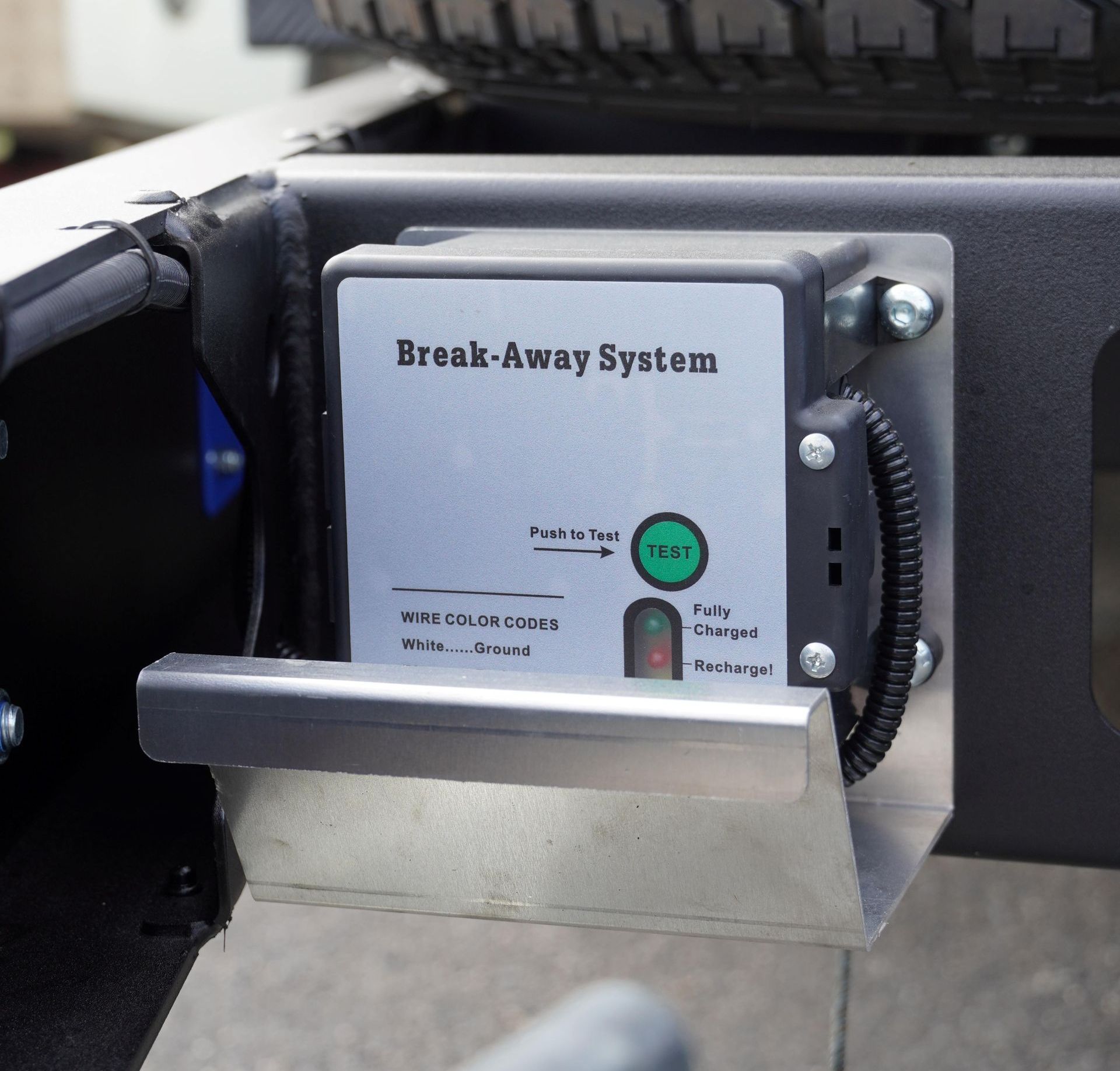

Break-Away System

The trailer Break-Away System is the ultimate emergency brake. It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

LOAD SHARING SUSPENSION
The Load Sharing Leaf Spring Suspension Set ensures a safe and stable trailer on and off-road.

The load-sharing system distributes weight evenly between the two wheels, ensuring the load remains level and the weight strain isn't put on one wheel.
DRUM BRAKES
Electric Drum Brakes provide a safe and reliable braking solution.

We provide a 10-inch drum brake as these are heavy-duty and robust.
STEEL AXLES
The 3000kg 65mm Square Steel Axles result in a stronger, yet lighter suspension set-up. The steel size of 65mm ensures the trailer can safely carry over 3000kg.

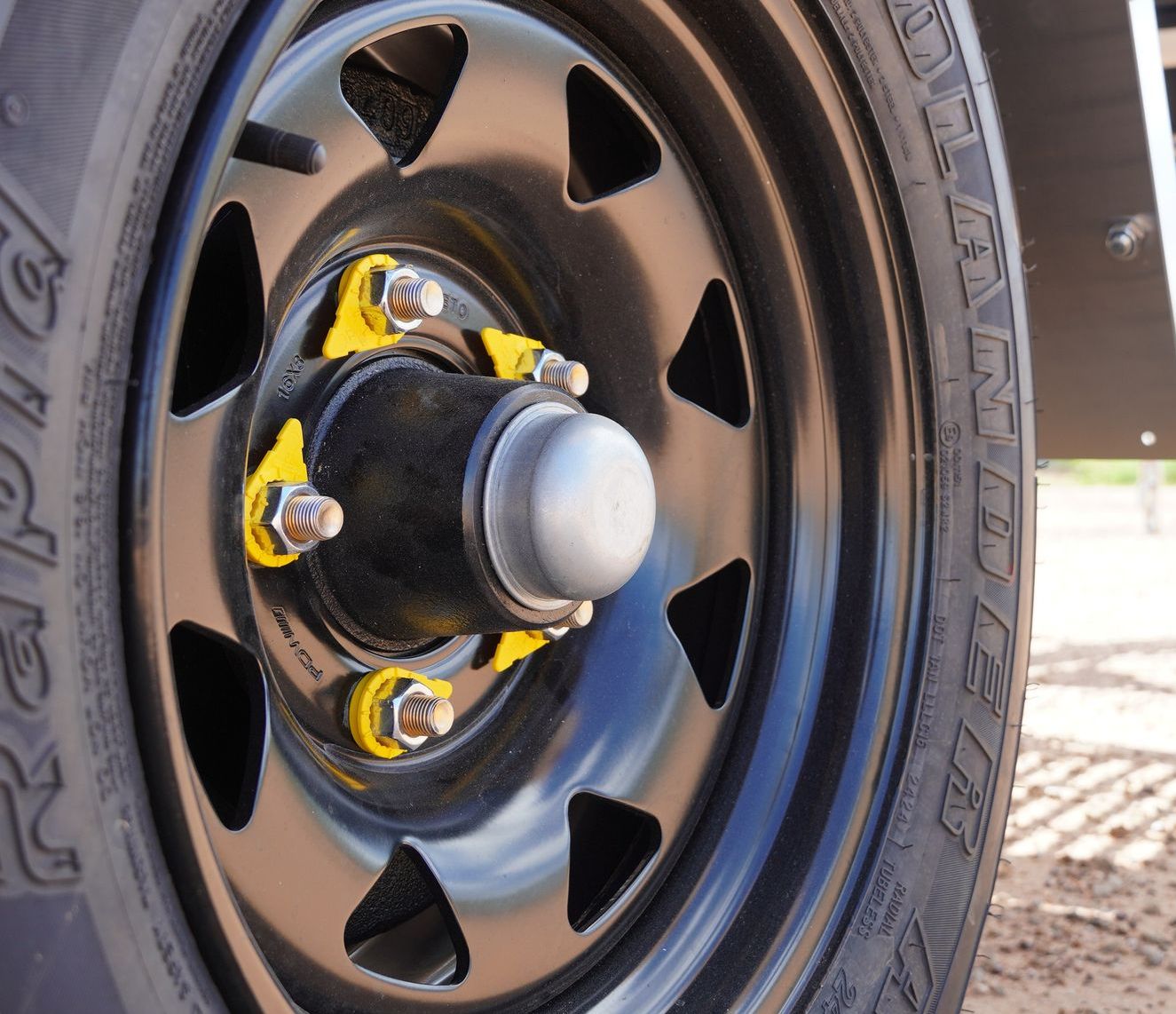

BEARINGS
Each trailer has 4 x 1800kg Dual Row Taper Roller Bearings
WHEELS + TYRES
Each trailer is fitted with All Terrain 195/R14C New Tyres

These tyres are equipped with 14-inch wheels with 5 Stud Ford Pattern Steel Rims.
HANDBRAKE + COUPLING
The Box Trailer is fitted with a Ratchet Trailer Handbrake and 50mm Coupling as standard.
BREAK-AWAY SYSTEM
The trailer Break-Away System is the ultimate emergency brake.
It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.
